eCryptfs: a Stacked Cryptographic Filesystem

by Mike Halcrow

The media has been delivering a seemingly endless stream of reports of lost or stolen laptops, backup tapes, hard drives and servers from government and corporate facilities. These devices often contain medical, financial and other sensitive data. When the storage devices fall into the wrong hands, attackers can access the data directly, completely bypassing the access control mechanisms in place in the organization's network. Reports indicate that millions of people already have been affected by such compromises. As a result, customers and citizens are at an increasing risk of identify fraud and loss of privacy.

Although the cryptographic technology to protect data confidentiality has existed for decades, many organizations have failed to integrate this technology into their processes for handling sensitive data. In cases where cryptography is included in that process, it is frequently obtrusive, costly and complicated. Organizations sometimes neglect to establish data encryption policies, and employees often ignore such policies once they are in place.

In cases where employees attempt to utilize cryptography, they often use it ineffectively. For instance, they often select weak keys, and it is easy to save or transfer data inadvertently in unencrypted form through insecure media (such as Web e-mail or a USB Flash drive). Security strategies that depend on individual applications performing their own encryption often fail when the user copies and pastes sensitive information to other applications that do not have cryptographic capability.

Data encryption needs to be made ubiquitous, transparent, flexible, easily deployable, integrated into the data handling process and, of course, secure enough to counter sophisticated attacks. These properties need to be in effect regardless of the particular applications accessing the data. To make encryption services application-agnostic, the operating system kernel itself should provide a system-wide data encryption service for sensitive information written to secondary storage.

Popular Cryptographic Filesystem Solutions

Several options exist for filesystem encryption under Linux, all with various advantages and disadvantages. Device mapper crypt (dm-crypt) ships with the Linux kernel and provides block device layer encryption. Loop-AES and TrueCrypt, which must be obtained separately from the official Linux kernel, also provide encryption at the block device layer. With block device layer encryption, the user creates the filesystem on the block device, and the encryption layer transparently encrypts the data before writing it to the actual lower block device.

The main advantage of block device layer encryption is that it is simple in concept and implementation. Another advantage of block device layer encryption is that attackers learn nothing about the filesystem unless they have the key; for instance, attackers will not even know the type of filesystem or the directory structure. Sparse files can be securely and efficiently supported in filesystems on encrypted block devices.

Block device encryption can have disadvantages that stem from the lack of integration with the filesystem itself:

  • A fixed region of storage must be pre-allocated for the entire filesystem. Resizing the partition later is often an inconvenient process.

  • It can be difficult to change encryption keys or ciphers.

  • There is no flexibility for the block device encryption mechanism to encrypt different files with different keys or ciphers.

  • Applications such as incremental backup utilities need access to the unencrypted data.

  • All content in the filesystem incurs the overhead of encryption and decryption, including data that does not require secrecy.

  • Files must be re-encrypted with a user-space application before they are transmitted through another medium.

EncFS is a user-space cryptographic filesystem that operates via FUSE. User-space filesystems are easier to implement than kernel-native filesystems, and they have the advantage of being able to utilize user-space libraries easily. This makes it simple to implement feature-rich filesystems with less time and effort on the part of the developer. Unlike block device encryption solutions, EncFS operates as an actual filesystem. EncFS encrypts and decrypts individual files. Disadvantages of user-space filesystems based on FUSE include performance overhead from frequent kernel/user-space context switches and a current lack of support for shared writable memory mappings.

eCryptfs

eCryptfs is a kernel-native stacked cryptographic filesystem for Linux. Stacked filesystems layer on top of existing mounted filesystems that are referred to as lower filesystems. eCryptfs is a stacked filesystem that encrypts and decrypts the files as they are written to or read from the lower filesystem.

Applications in user space make filesystem system calls that go through the kernel Virtual Filesystem (VFS). Both eCryptfs and the lower filesystem (for example, ext3, JFS, NFS and so on) are registered in the kernel VFS. The operations under the eCryptfs mountpoint first go to eCryptfs. eCryptfs retrieves key material from the user session key ring and uses the kernel cryptographic API to perform encryption and decryption of file contents. eCryptfs may make key management requests with the user-space eCryptfs dæmon (ecryptfsd). eCryptfs reads and writes encrypted content stored in files in the lower filesystem (Figure 1).

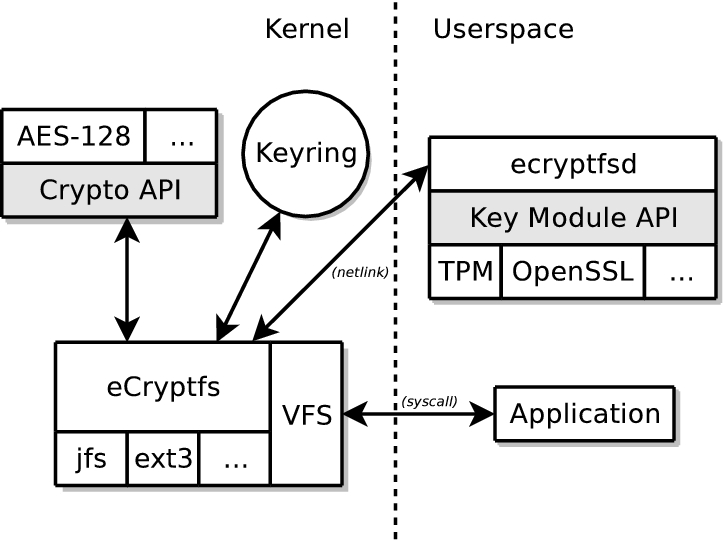

Figure 1. Application file operations go through eCryptfs.

Application file operations go through eCryptfs, which communicates with the kernel crypto API, the kernel key ring and the user-space eCryptfs dæmon to perform encryption and decryption. eCryptfs manipulates files in lower filesystems, such as JFS or ext3.

eCryptfs aims to provide the flexibility of a Pretty Good Privacy (PGP) application as a transparent kernel service. For that reason, the OpenPGP (RFC 2440) specification inspires the basic key handling techniques in eCryptfs. This includes the common procedure of using a hierarchy of keys when performing cryptographic operations (Figure 2).

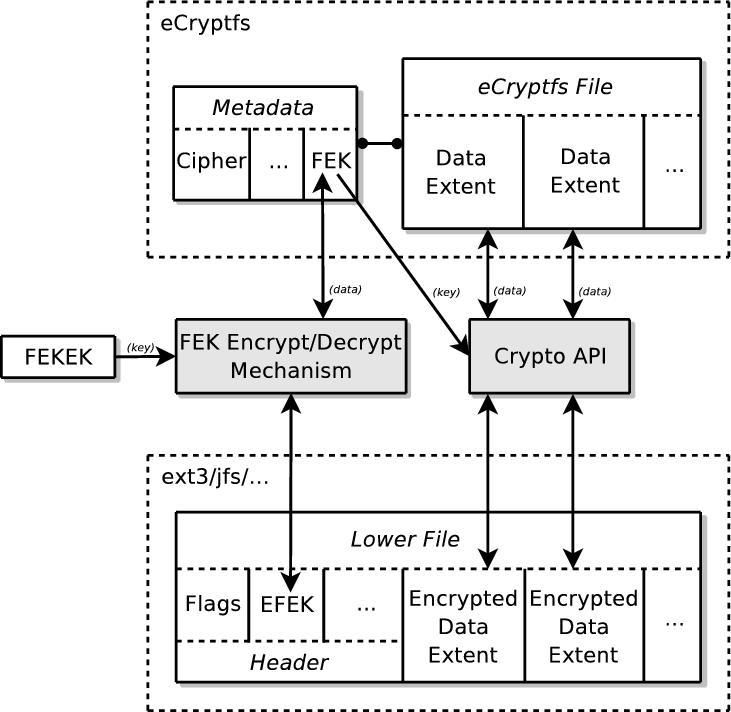

Figure 2. eCryptfs encrypts and decrypts individual data extents.

eCryptfs encrypts and decrypts individual data extents in each file using a unique randomly generated File Encryption Key (FEK). The FEK is encrypted with the File Encryption Key Encryption Key (FEKEK), and the resulting Encrypted File Encryption Key (EFEK) is stored in the header of each lower file.

The cryptographic metadata is in the header region of the encrypted lower file. Users can transmit the lower file as is to other users, and the recipients can access the decrypted contents of the file through eCryptfs, so long as they have the proper key. This provides a high degree of flexibility in how the files can be handled while maintaining strong security.

Using eCryptfs

eCryptfs requires a kernel component and a user-space component. The kernel component ships in the current mainline Linux kernel. See Listing 1 for the minimum kernel options necessary to enable eCryptfs. By default, eCryptfs uses the AES cipher. eCryptfs can use other ciphers available in the kernel if you build them.

Listing 1. Kernel Options Needed for eCryptfs


Code maturity level options  --->
  [*] Prompt for development and/or
      incomplete code/drivers

Security options  --->
  <M> Enable access key retention support

Cryptographic options  --->
  <M>   MD5 digest algorithm
  <M>   AES cipher algorithms

File systems  --->
  Miscellaneous filesystems  --->
    <M> eCrypt filesystem layer support (EXPERIMENTAL)

Newer versions of the Linux kernel contain more feature-rich versions of eCryptfs. For instance, Linux kernel version 2.6.19 is the first official kernel version that contains eCryptfs, and only passphrase mode of operation is available in that kernel. At the time of this writing, the development kernel branch version 2.6.20-mm contains public key support, so that feature may be now available in more recent mainline kernel versions. You can determine the features available in your kernel by loading the ecryptfs module and viewing the contents of fs/ecryptfs/version_str under your sysfs mountpoint.

Popular Linux distributions carry the eCryptfs user-space packages; follow the software package installation procedure for your distribution to install the ecryptfs-utils package. If the eCryptfs user-space tools are not yet available from your distribution, you can download, build and install the source tarball. You can obtain the user-space components from the eCryptfs SourceForge site (ecryptfs.sourceforge.net).

If eCryptfs is built as a kernel module, you need to load the module:

# modprobe ecryptfs

At this point, you can begin using eCryptfs with whatever filesystem you are currently using. To mount eCryptfs, specify the lower directory for the encrypted files and the eCryptfs mountpoint for the decrypted view of the files:

# mount -t ecryptfs /secret /secret

The first path is the lower directory, and the second path is the eCryptfs mountpoint. Note that the lower directory and the mountpoint have the same path in this example. These paths can be different, but I recommend doing a layover mount in order to help ensure that only eCryptfs has access to the files in the lower filesystem. This command transforms the given path from the lower directory into the eCryptfs mountpoint for the duration of the mount.

When performing a mount, the eCryptfs mount helper first attempts to read in options from the .ecryptfsrc file in the current user home directory, and then it reads options provided via the command line. The mount helper interactively prompts for any mandatory options that are not specified in the .ecryptfsrc file or the command line. For instance, you may be asked to choose a passphrase and a cipher.

Once the mount has completed successfully, files written to the /secret mountpoint will be encrypted transparently and written to the /secret directory in the lower filesystem. Encrypted files that exist in the lower /secret directory and that are able to be decrypted with the key specified at the time of the mount will be accessible in their unencrypted form when read from the /secret eCryptfs mountpoint.

When you unmount eCryptfs and look in /secret, you will see the encrypted lower files. You may first notice that the lower files are larger than the files viewed under the eCryptfs mountpoint. The exact size of the lower files depends on the page size of your host and on the amount of data written. In general, the minimum lower file size is either 12KB or your host page size plus 4KB, whichever is larger. This helps ensure page alignment between the eCryptfs file and the lower file, which helps performance. The lower file then grows in 4KB increments as data spills into new 4KB data extents.

The extra space at the front of each lower file contains cryptographic metadata about the file, such as attribute flags and an encrypted file encryption key. Having this information in the file contents makes it convenient to transfer or back up the files while preserving all the information necessary to access the files later. However, the headers can take up a disproportionally large amount of space if there are many small files. Newer releases of eCryptfs can store the data in the extended attribute region instead, reducing the size of the lower encrypted files; refer to the eCryptfs on-line documentation at ecryptfs.sourceforge.net for more information on using this feature.

If your kernel has public key support, you can utilize one of the eCryptfs key modules to manage your key. You can check for support in the version of eCryptfs in your kernel by viewing the contents of fs/ecryptfs/version_str under your sysfs mountpoint. If there is support, you will see pubkey listed as one of the supported features.

Key modules can be selected and parameterized via mount options. If you want to use the OpenSSL key module, you first need to generate a public/private key pair to use in eCryptfs. To generate a key pair, do the following:

  • Run ecryptfs-manager.

  • Select menu option 3.

  • Select the openssl key module.

You also need to run the eCryptfs dæmon in order to manage kernel-user-space communications; the dæmon can be started simply by running the executable:

# ecryptfsd

Note that running the dæmon is not necessary if you are using only the passphrase mode of operation. Then, assuming you created your key in /usb-drive/mykey.pem, you would mount with the following options:

# mount -t ecryptfs \
  -o key=openssl:keyfile=/usb-drive/mykey.pem \
  /secret /secret

Given these options, the eCryptfs mount helper prompts you for a passphrase that protects the private key contained in the key file.

You can mount the same lower directory with many different combinations of keys and ciphers (known as a mount context), and that particular context will apply to any new files created under the mountpoint. For current versions of eCryptfs, files created under any given mount context will be accessible only when the mount is performed with that same context.

Notes on Security

As with any filesystem, you should make regular backups of your data when using eCryptfs. This is done easily and securely by unmounting eCryptfs and reading the lower encrypted files.

eCryptfs protects only the confidentiality of data at rest that is outside the control of the trusted host environment. You should use access control mechanisms properly, such as SELinux on the trusted host in order to regulate access to the decrypted files.

eCryptfs will, by default, preserve all of the information necessary to access the decrypted contents of the files in the contents of the lower files themselves. All that is required is the key used to create the files in the first place. You should take measures to protect this key. If applications, such as incremental backup utilities, are configured to read only the lower encrypted files, these utilities do not need to apply any further encryption to the files in order to ensure data confidentiality.

If you are using a passphrase, follow common best practices in selecting and protecting your passphrase (for instance, see www.iusmentis.com/security/passphrasefaq). I recommend using the public key mode of operation instead of passphrase mode whenever possible. When using a public key module, make a backup copy of your key file and store it in a physically secure location. Should you lose your key, nobody will be able to retrieve your data. Do not store unprotected copies of your passphrase or your public key file on the same media as your encrypted data.

You are free to choose among the symmetric encryption ciphers that are available through the Linux kernel cryptographic API. eCryptfs recommends AES-128 as the default cipher. If you have hardware acceleration available on your machine, and if it is supported by the selected cipher in the kernel cryptographic API, eCryptfs encryption and decryption operations will be hardware-accelerated automatically.

You should take measures to ensure that sensitive data is not written to secondary storage in unencrypted form. Applications that write out sensitive temporary data should be configured so that they write only under an eCryptfs mountpoint. You also should use dm-crypt to encrypt the swap space with a random key. The details are beyond the scope of this article, but commands to set it up take the following form:

# cryptsetup -c aes-cbc-plain -d /dev/random create \
  swap /dev/SWAPDEV
# mkswap /dev/mapper/swap
# swapon -p 1 /dev/mapper/swap

SWAPDEV is the swap block device on your machine (refer to your /etc/fstab file if you are not sure which device currently is used for swap). You can create simple boot scripts to set up the encrypted swap space automatically, run ecryptfsd and perform eCryptfs mounts. Consult your distribution's documentation for more details on writing boot scripts and using dm-crypt with a random key to encrypt your swap space.

Note that current releases of eCryptfs encrypt only the file contents. Metadata about the file—for instance, the size, the name, permissions and extended attributes—are all readable by anyone with access to the lower encrypted file. Future work on eCryptfs will include encryption or obfuscation of some of this metadata.

Using block device encryption together with eCryptfs can combine the security provided by both mechanisms while offering the flexibility of having seamless access to individual encrypted lower files, although this roughly doubles the processing overhead of encrypting and decrypting the data. If only the contents of the files on secondary storage require confidentiality, eCryptfs by itself is, in most cases, sufficient.

Future Work

eCryptfs was designed to support a host of advanced key management and policy features. The development road map for eCryptfs includes multiple keys per file, different keys and ciphers for different files depending on the application creating the file and the location where the file is being written, integrity enforcement and more extensive interoperability with existing key infrastructures and key management devices. These features will become available as they are implemented in future versions of the Linux kernel.

Conclusion

eCryptfs is a flexible kernel-native solution that cryptographically enforces data confidentiality on secondary storage devices. eCryptfs can be deployed on existing filesystems with minimal effort. The individual encrypted files can be transferred to other hosts running eCryptfs and accessed transparently using the proper key. The eCryptfs key management mechanism is highly extensible. eCryptfs is suitable to use as a strong and convenient data-confidentiality enforcement component to help secure data managed in Linux environments.
