Porting LinuxBIOS to the AMD SC520: A Follow-up Report

As of July 15, 2005, we have moved the arch repository to
Subversion. Arch checkouts will continue to work, but any new changes
will be available only in Subversion.
It's quiet. Too quiet.
Well, it was too easy. Things were going well with
our project to
port LinuxBIOS, until we tried to Flash the Flash part. Then we started
to hit some problems with the board, the board design
and the AMD SC520.

What went wrong? Put simply, when we tried to use the
flash_rom program to Flash the part, it failed even to
discover the type of part we had on the board. From
there, it got worse. We wrote a small program to dump
the Flash part, shown here:

#include <errno.h>

#include <fcntl.h>

#include <sys/mman.h>

#include <unistd.h>

#include <stdio.h>

#include <string.h> #

include <stdlib.h>

#include <ctype.h>

main(int argc, char *argv[]) {

int fd_mem;

volatile char *bios;

unsigned long size = 512 * 1024;

int i;

if ((fd_mem = open("/dev/mem", O_SYNC|O_RDWR)) < 0) {

  perror("Can not open /dev/mem");

exit(1);

}

bios = mmap(0, size, PROT_READ, MAP_SHARED, fd_mem,
off_t) (0xffffffff - size + 1));

if (bios == MAP_FAILED) {

perror("Error MMAP /dev/mem");

exit(1);

}

write(1, bios, 512*1024);

}


When we ran this program, we couldn't get sensible
results. This program runs and runs well on everything
else we own--several thousand K8 nodes, our laptop,
1,500 Xeon nodes--so it is not the program. What's
going on?

As mentioned, we found a problem with the design of the
MSM586SEG and the other SC520-based boards from
Advanced Digital Logic. The problem, put simply, is
the full Flash part cannot be accessed from the
CPU; only the top 128KB of the part can be
accessed. This limitation requires us to modify all of the
tools that we support for Flash access, so they are
aware that although the nominal size of the Flash is
256 or 512KB, only 128KB of that space is
available.

Making that change, however, still did not help. When we dumped the
Flash part, we got not garbage but nonsense. We saw
strings that read CCCCoooo and so on. This
nonsense led us to think that the Flash space was being cached somehow.
In addition, we believed the hardware design had a problem such that burst reads
from the Flash part--which would happen if the cache
were enabled in the range of memory--were returning the
same byte four times, not four consecutive bytes.

Then, we hit some other problems. We had two MSM586SEG
boards, and the IDE interface on both of them stopped
working. It turns out that the MSM586SEG has an FPGA
controlling many functions, and we suspect that this
FPGA has some teething problems. We decided to try out
the older design, the MSM586SEV, which has no FPGA.

The MSM586SEV resolved all our problems save one: we
still got nonsense when we tried to read the Flash. It
now was time for some deep-diving into the SC520
architecture. We learned that a set of 16 registers,
called the PAR registers, need to be managed in order
to enable Flashing the part.

What are the PAR registers? They are used to steer
memory and I/O access issued by the CPU.
Almost all processors today have a special set of
registers in the memory and I/O address generation path
to modify the manner in which such addresses are
handled.

Why is this type of register needed? With multiple busses
capable of supporting memory and I/O access, the processor
has no idea where to send the access unless it is told.
That is the function of the PAR registers. Consider the block

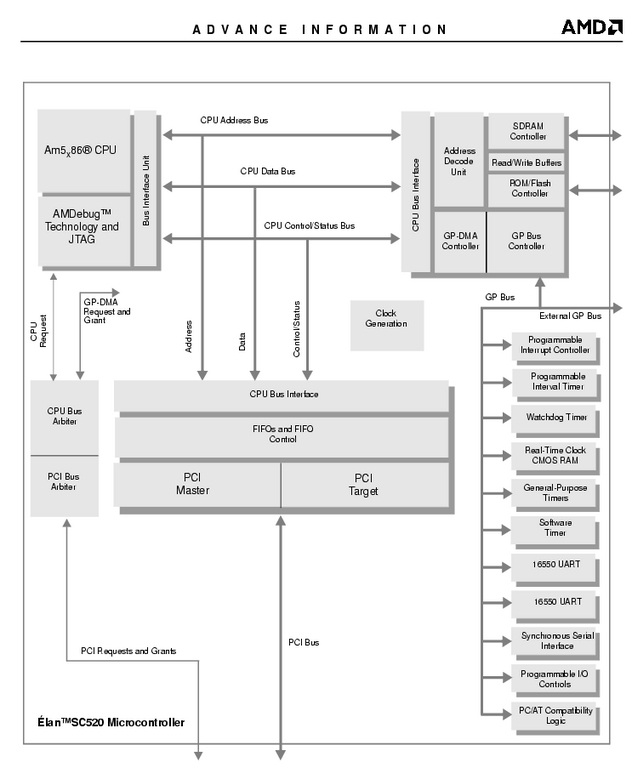

diagram of the SC520 shown below.
Figure 1. SC520 Block Diagram
A given I/O access can go to the PCI bus or to the GP
devices shown at right. A memory access can go to
SDRAM, the Flash part or the PCI bus. The PAR
registers allow the BIOS to specify, for a given range
of I/O or memory, which bus it goes to, whether it is
writable or read-only and whether it is cached.

We found that for the BIOS range of memory,
0xe0000-0xfffff, the PAR register was set to SDRAM.
This setting is not surprising: for performance, the
BIOS typically copies the BIOS image to SDRAM and then
makes sure all BIOS code fetches go to the SDRAM
holding the BIOS. This operation is commonly called
"shadowing the BIOS".

Because Linux doesn't use the BIOS at all, we can ignore
this setting. What we do is set the PAR register for
the BIOS region, PAR register 15, back to the original
BIOS. This is a simple matter of mapping in the registers,
and then setting the register. Here is a code fragment to do so:

if ((fd_mem = open("/dev/mem", O_SYNC|O_RDWR)) < 0)

{ perror("Can not open /dev/mem"); exit(1); }

mmcr = mmap(0, 4096, PROT_WRITE|PROT_READ, MAP_SHARED,
fd_mem, (off_t) 0xfffef000);

if (mmcr == MAP_FAILED)

{ perror("Error MMAP /dev/mem"); exit(1); }

p = mmcr + 15; l = *p; printf("l is 0x%lx\n", l);

/* clear cache bits */

l |= (1<<27);

/* enable writeable bit */ l

&= ~(1<<26);

/* set type to flash, not sdram */

l &= ~(7<<29); l |= (4<<29);

/* 64k pages */ l

|= (1<<25);

/* blow away base and size stuff. */

l &= ~(0x1fff | (0x7ff<<14));

printf("l is now 0x%lx\n", l);

l |= (8 << 14) | (0x2000000>>16);

printf("l is now 0x%lx\n", l);

*p = l;

Once we had this done, we still had troubles. The
further problem was the design of the PAR registers.
They live in memory at 0xfffef000; in other words,
they are placed right in the middle of the top 2MB of
the 4GB of memory space. This space is, by convention,
reserved for BIOS Flash, but the SC520 breaks that
convention. So, although we had worked around the board
problems, we now were faced with an architectural
problem.

A light bulb went off at this point, though, relating to
comments we had seen in sample code from AMD. The AMD
code always was careful to program the PAR registers to
place the Flash part above the top of DRAM, that is, at
32MB or hex 0x2000000. We modified our parbios
program slightly, and voilà--all 512KB of Flash now was
available, starting at 0x2000000.

Th effects of this change are far-reaching. We had to modify our
flash_rom program to enable the Flash on the SC520 and
place the Flash at an odd location in memory.
Nevertheless, at least we can program it now. This change
also affects LinuxBIOS itself. If we want to use all
of the Flash part, or simply more then 64KB, we're going
to have to make a lot of changes to how LinuxBIOS
addresses Flash. We've never seen a machine to date
that could not address Flash directly at the top of
memory.
First Contact
The Flash is burned. The serial port works. Let's plug
it in.

We also had to modify the SC520 startup code to mimic
the setup of the PAR registers. With this set of
changes made, we got our first serial output:

LinuxBIOS-1.1.8.0Fallback Tue Jun 14 13:36:22 MDT 2005
starting...

Copying LinuxBIOS to ram.

Jumping to LinuxBIOS

Well, it's a start. For the record, this is version

LinuxBIOS@LinuxBIOS.org--devel/freebios--devel--2.0--patch-45.

What's going on now? What does jumping to
LinuxBIOS mean?

What this all means is the ROMCC-based code is
working, but the SDRAM is not. Because the SDRAM is
not working, the GCC-compiled code doesn't work either.
It's time to put in some printing. It's also time to scan
carefully the src/cpu/amd/sc520/raminit.c code for
errors. As of this version, this code still is pretty
ugly, as it came from assembly code. Quick perusal does
show a few errors, but prints are the best bet at this
point. It is hard to tell what is really going
on at times.

Here is the output from this version:

LinuxBIOS-1.1.8.0Fallback Tue Jun 14 16:29:46 MDT 2005
starting...

HI THERE!

sizemem

NOP

And then it resets. For reference, I have committed this
version as patch-46. See the raminit code to see where
this is blowing up.

At this point, we had to do a bit more digging. We
noticed in the AMD assembly code that although
a lot of byte registers are used to control various
things, some of the assembly seems to use word writes.
Even for a byte-wide register that has another register
right after it, the code uses word writes.

We moved to word writes and things got much better.
Once it is all working, for the sake of cleanliness,
we're going to try to turn these back into byte writes.
Word writes make no sense, unless there's a hardware
problem.
It's Important to Specify the Correct CPU
We consistently had resets on a certain code sequence,
almost as though we were compiling for the wrong
processor. Well, as it happened, we were. Although we
had set this line in the Config.lb for the mainboard:

arch i386 end

we had a mistake in one of the extra compilation rules.
We were telling ROMCC that the the CPU was a P3:

makerule ./auto.inc depends "$(MAINBOARD)/auto.c
option_table.h ./romcc" action "./romcc -mcpu=p3 -O
-I$(TOP)/src -I. $(CPPFLAGS) $(MAINBOARD)/auto.c -o $@"
end

What's the problem with doing this? In short, when we
specify P3 as the CPU for ROMCC, ROMCC generates MMX
instructions to use those extra registers. This usage
causes trouble, as there are no MMX registers on a
486.

We modified the line as follows:

makerule ./auto.inc depends "$(MAINBOARD)/auto.c
option_table.h ./romcc" action "./romcc -mcpu=i386 -O
-I$(TOP)/src -I. $(CPPFLAGS) $(MAINBOARD)/auto.c -o $@"
end

Things suddenly got much, much better.
Finally, Getting into LinuxBIOS
But how do we tell? The code that copies the LinuxBIOS RAM
part is assembly. It says jumping to LinuxBIOS,
but all we see is POST EE. We're going to give you an overview
of how you might debug for a new platform. What we're
going to do is bypass most of LinuxBIOS that occurs
outside of the ROMCC code. Mostly what this code does
is uncompress the GCC code and copy it to SDRAM. This
code can be hard to follow, however, so we're going to
skip it completely.

We're going to make the code that gets copied to RAM be
uncompressed rather than compressed, which will take more
space. So we need to use as much of the Flash as we
can. We're going to need to make Flash map in at
0x2000000. In the auto.c code, we're going to copy
that Flash to RAM. Finally, in the code, we're going to
insert a few loops like this one:

1: jmp 1b

so that if the machine hangs, we know it got to the
infinite loop.

Let's take it one part at a time. In our
src/cpu/amd/sc520/raminit.c file, we add the following:

*par++ = 0x8a020200;

/*PAR15: BOOTCS:code:nocache:write:Base 0x2000000, size
    0x80000:*/

You can see that code in there even now. This maps in the
FLASH at the 32MB location. Next, we set up
LinuxBIOS so that the GCC payload is uncompressed. How
do we do this? First, we need to explain memory layout. A number of
variables control Flash

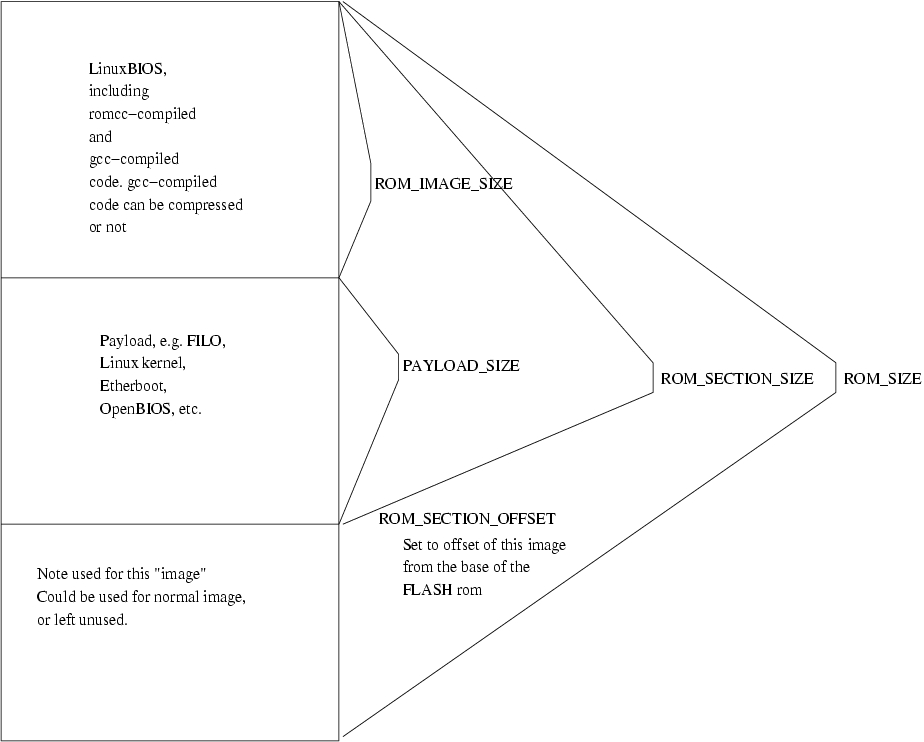

layout in LinuxBIOS, as shown in Figure 2. Notice that
each set of variables can be changed for each payload.
In our example, at this point, we are using only
one payload, so we show the variables for that case.
Figure 2. ROM Sizing Controls
In src/mainboard/digitallogic/msm586/Options.lb, we set
CONFIG_COMPRESS to zero. We set the ROM_SIZE to 128K,
and we set ROM_IMAGE_SIZE large enough to hold the
uncompressed payload. If you look at various patch
levels of LinuxBIOS in the repository, you can trace our
progress in debugging; space does not allow it all
here. We've left the appropriate code in auto.c between
ifdefs so you can see how it looks. A word of warning: care
must be taken with volatile. Romcc is a good compiler.
If you're not careful with volatile, it gladly will
optimize out copy-assignment loops.

Also, in crt0.s, we did some playing around. Here's a
useful assembly sequence for telling you where you are
and making sure you get to see it:

_start: movb $0x12, %al ; outb %al, $0x80; jmp _start

We do verify that in the assembly, we're getting to
hardware main. So in hardwaremain(), we put in a call to
post, followed by a while(1), and we do see the system
hang at that point.

The next step is to test a
back-to-back post(). In other words, we call post()
twice. Why is this important? It verifies that the
stack is working too. To this point, all we've done is
call functions; we haven't really found out about returns.
Calls can work always, but returns rely on a stack
that works. If memory is not correctly set up, a return will fail. We have, in the past, had a
sequence of function calls that worked fine until the
first function exit, at which point the system
failed. Memory really can be this tricky. Back-to-back
calls to post(), though, verify that we have a working stack.

The key idea here is the careful placement of
so-called "halt-and-catch-fire" instructions, with a
little bit of output, can allow you to pinpoint how far
you are getting in the code.

To make a long story short, we got caught by our own
error in the config file. We forgot to tell LinuxBIOS
what kind of console we have. This is fixed easily. In
src/mainboard/digitallogic/msm586seg/Options.lb, we add:

uses CONFIG_CONSOLE_SERIAL8250

default CONFIG_CONSOLE_SERIAL8250=1

Now, do we have a console? Let's see.
We Have a Console
We now get this output:

Copying LinuxBIOS to ram.

Jumping to LinuxBIOS.

LinuxBIOS-1.1.8.0Fallback Wed Jun 22 16:10:58 MDT 2005 booting...

Enumerating buses...

scan_static_bus for Root Device

PCI_DOMAIN: 0000 enabled

scan_static_bus for Root Device done

done

Allocating resources...

Reading resources...

Root Device compute_allocate_io: base: 00000400 size:
00000000 align: 0 gran: 0

Root Device read_resources bus 0 link: 0

PCI_DOMAIN: 0000 missing read_resources

Root Device read_resources bus 0 link: 0 done

Root Device compute_allocate_io: base: 00000400 size:
00000000 align: 0 gran: 0e

Root Device compute_allocate_mem: base: 00000000 size:
00000000 align: 0 gran: 0

Root Device read_resources bus 0 link: 0

PCI_DOMAIN: 0000 missing read_resources

Root Device read_resources bus 0 link: 0 done

Root Device compute_allocate_mem: base: 00000000 size:
00000000 align: 0 gran: e

Done reading resources.

Setting resources...

Root Device compute_allocate_io: base: 00001000 size:
00000000 align: 0 gran: 0

Root Device read_resources bus 0 link: 0

PCI_DOMAIN: 0000 missing read_resources

Root Device read_resources bus 0 link: 0 done

Root Device compute_allocate_io: base: 00001000 size:
00000000 align: 0 gran: 0e

Root Device compute_allocate_mem: base: 100000000 size:
00000000 align: 0 gran:0

Root Device read_resources bus 0 link: 0

PCI_DOMAIN: 0000 missing read_resources

Root Device read_resources bus 0 link: 0 done

Root Device compute_allocate_mem: base: 100000000 size:
00000000 align: 0 gran:e

Root Device assign_resources, bus 0 link: 0

Root Device assign_resources, bus 0 link: 0

Done setting resources.

Done allocating resources.

Enabling resources...

PCI_DOMAIN: 0000 missing enable_resources

done.

Initializing devices...

Root Device init

Devices initialized

Copying IRQ routing tables to 0xf0000...done.

Verifing copy of IRQ routing tables at 0xf0000...done

Checking IRQ routing table consistency...

check_pirq_routing_table() - irq_routing_table located
at: 0x000f0000

done.

Wrote LinuxBIOS table at: 00000500 - 00000af0 checksum 934c

Welcome to elfboot, the open sourced starter.

January 2002, Eric Biederman.

Version 1.3

23:stream_init() - rom_stream: 0xffff0000 - 0xffff7fff

Found ELF candidate at offset 0

header_offset is 0

Try to load at offset 0x0

Could not find a bounce buffer...

Cannot Load ELF Image

Well, that's a start anyway. What's up with the bounce
buffer? This is not the real problem. The real problem is
LinuxBIOS thinks there is no memory. Remember that in the
beginning we set up the CPU with no functions to
be called? It turns out we do need to have some
functions called, because part of what the functions
have to do is indicate how much memory there is. We can
look to another Northbridge chip for
inspiration. It is pretty close to the SC520 and
avoids the complications of the K8 Northbridge, which
are very complex. You can see how things now look in the repository, at
version 50.
FILO Output!
We get a FILO banner and an immediate reset, but at
least we get something. Now it's time to turn up the debugging
in FILO and see what's wrong.

It turns out that this chip has no hardware timestamp
counter (TSC). So when you try to read the TSC, the
chip does the right thing; namely, it takes a general
protection fault and goes into crash-and-burn
mode. FILO never has run before on a chip without a
TSC. We had to fix FILO.

We've included a FILO in the Subversion version of the
LinuxBIOS tree that can use the SC520 millisecond
timer. This timer is a nice free-running timer
that provides an accurate timestamp count.

Once we do that, FILO gives us a prompt but says
there is no IDE. Another trip back to the MMCR
registers shows we need to enable the built-in IDE chip
select lines, which are not on by default. Oddly
enough, a lot of these embedded chips with built-in
controllers tend to come up with those features
disabled. Setting a few more MMCR registers by hand
does the trick.
Success
As of June 28, we have been booting a Linux kernel. A few more registers
needed to be set and then we were good to go.
Failure
The kernel comes up and works fine, except not all the
interrupts are getting to it. This is a problem in the
configuration of the interrupt registers. The interrupt
registers are located in the MMCR region of memory,
which we previously have had to deal with. Our first
idea was to simply dump the registers and restore them, but doing so
only made things worse! At that point, not even
the clock interrupt worked. Obviously, there is some
trickiness to the interrupt register settings that we
need to work out.
Success
After a little more looking at the manual, the interrupt
issues made more sense. As of July 12, we are booting a
kernel to multiuser status, and all interrupts are working.
Follow Our Progress
Well, what's left to do? We're going to add VGA
support, so we can have a console. We're going to clean
things up in the port, too, now that so much is working.
There is not space to track the whole process in this
article; we do have a word limit, after all. The board
is almost done, and once it basically works, we'll go
back and really clean the code up, while leaving in
bits that we hope will be useful as debug examples for other
ports. We intend to build a lot of computers with these
boards; they're pretty nice, albeit a little
slow. They're great for building portable development
and test clusters, however.

We've also discovered, as we frequently do, that the
standard BIOS has misconfigured parts in the chipset.
This type of misconfiguration is common with
proprietary BIOSes, because nobody can check the
correctness of everything they are doing. We're going to need
to go back and verify all of our settings now, and make sure
that no further mistakes were copied from the proprietary BIOS.
Conclusion
LinuxBIOS is a GPLed system you can use to bring up your boards quickly
and reliably. It is in use
on over a million systems around the world, in
applications as diverse as test instruments and
televisions. We use it at LANL (Los Alamos
National Laboratory) on almost 5,000 cluster
nodes, possibly reaching 7,000 by year's end.

In contrast to proprietary BIOSes, LinuxBIOS lets users
tailor the system boot-up sequence to fit their exact
needs. The Version 2 system we have shown in these two
articles is modular and features an object-oriented
structure that, in practice, has let us build
compact BIOS images. Images smaller than 32KB are
routine, even on complex systems such as 8-way Opterons
with 32 PCI busses. LinuxBIOS also is portable and has
run on 64-bit Alpha systems as well as PowerPC systems.
A port to the PowerPC 970, a 64-bit system, is in
progress.

For x86 systems, LinuxBIOS includes a full ANSI C
compiler, ROMCC, which uses registers instead of memory.

The SC520 is a great chip marred by almost no mistakes.
Probably the single biggest problem is the location of
the configuration registers, placed right in the middle
of the top 2MB of memory, which always should be
reserved for BIOS Flash. That said, the more we
worked with this part, the more we appreciate its
design.

A lot of our testing of register settings for the SC520
was done in Linux before LinuxBIOS. If you start
working on your own port, remember the value of doing
this type of register probing under Linux--it's a lot
easier. To do I/O operations, use the iopl() system
call; for memory operations, use mmap().

Principal work on LinuxBIOS in the coming year will be
making it easier for engineers to use it who don't have
more than a few days a month to work on it. In other
words, we're moving from the dedicated, full-time
engineer to the engineer who uses LinuxBIOS as a tool
but is not that concerned with the internal workings.
The overall goal is to reduce the learning curve for
LinuxBIOS. Watch the Web page to see the
announcements of these changes as they are made.
Acknowledgments
Thanks to Gary Karns and Martin Mayer of Advanced
Digital Logic for their help in answering questions,
expediting board shipments and providing the
information we needed to get this all going.

This research was funded in part by the Mathematical
Information and Computer Sciences (MICS) Program of the
DOE Office of Science and the Los Alamos Computer
Science Institute (ASCI Institutes). Los Alamos
National Laboratory is operated by the University of
California for the National Nuclear Security
Administration of the United States Department of
Energy under contract W-7405-ENG-36. Los Alamos, NM
87545 LANL LA-UR-05-5272.
Resources
LinuxBIOS Wiki

LinuxBIOS
Mailing List

Advanced Digital Logic,
Inc.

Ronald Minnich is the team leader of the Cluster Research Team at Los
Alamos National Laboratory. He has worked in cluster computing for
longer than he would like to think about.
