Linux Maximus, Part 1: Gladiator-like Oracle Performance

"Damn the torpedoes! Full speed ahead." -
Admiral David FarragutAs it does for many people today, the Linux movement
enthralls me. I'm interested not only because I'm more of a
UNIX-based DBA but also because of the amazing speed with which
major vendors, such as HP, Compaq, Dell, IBM and Oracle, have
embraced this open-source operating system. Last year Linux server
sales accounted for approximately 30% of Compaq's, 13.7% of Dell's
and 13.5% of IBM's total server sales, according to eWeek.
Moreover, IBM spent a billion dollars on Linux development in 2001,
after having ported Linux to all their hardware platforms in 2000.
Furthermore, Intel's new 64-bit Itanium CPU lists only four
supported operating systems: Windows, Linux, AIX and HP-UX. And
let's not forget that Oracle released 9i on Linux months ahead of
the Windows port. Then again, maybe I just like the underdog--I
mean I'm writing this article on my AMD Athlon-based PC.But no matter how fashionable Linux may be, that popularity
does not automatically translate into nor does it guarantee
performance. Even though Linux runs on everything from IBM 3/90s to
Sun SPARC-based boxes, most people at this point are still probably
running Linux on Intel-based server platforms. Now without sounding
condescending, let me state that the PC architecture was never
really intended to scale to the heights Linux makes possible. Thus
we need to make sure that we squeeze every last drop of blood out
of the turnip when we deploy an Intel based Linux
server--especially for enterprise databases like DB2 and Oracle.
Believe it or not, it's quite easy to get upwards of 1000% database
improvement through proper Linux tuning and database configuration
for Linux.As with any scientific endeavor, in this article we will
attempt to evaluate different tuning techniques by establishing a
controlled environment where we can ascertain a baseline, identify
all the changeable relevant variables, modify one variable at a
time and obtain a reliable measurement of the effects for that one
change. Wow, I haven't written techno-babble like this since I was
a Physics student at Ohio State. In plain English, we must test one
tuning concept at a time in order to accurately measure the
observable effects of only that change.First you need a test environment. I used a Compaq quad CPU
server with 512 megabytes memory and eight 7200 RPM ultra-wide SCSI
disks. Then I did the exact same tests with a single CPU Athlon
system with the same amount of memory, but with a single 7200 RPM
ultra100 IDE disk drive. Although the raw numbers and percentages
were not identical, the observed improvement pattern was. That is,
every test made each system better in the same general direction
and similar magnitude.Linux servers are truly universal in function, utilized
easily as web servers, application servers, database servers,
routers, firewalls, e-mail servers, file servers, print servers and
combinations of the above. But we need to pick one such usage;
remember our single variable requirement.For simplicity, I chose the TPC benchmark as my testing
methodology. It's widely recognized as a reliable OLTP workload
benchmark, it has both on-line and deferred transactions, it's
non-uniform in nature and it applies to numerous databases,
including Oracle and DB2. Plus the TPC can be configured to stress
all aspects of the hardware: CPU, memory, bus and disk. And to be
totally honest, I'm a DBA, and Quest has a wonderful tool called
Benchmark Factory that makes defining, running and measuring TPC

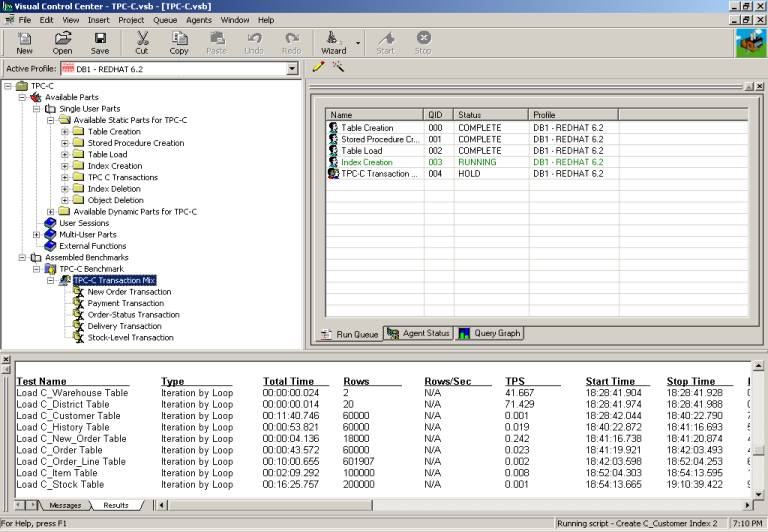

tests as simple as sending e-mail. The screen snapshot below shows
Benchmark Factory's complete interface. With it you can create a
TPC benchmark project, define some parameters such as database size
and number of concurrent users, copy the tests you want to measure
to the run queue, run the tests in the queue and observe the
results. No work at all, really.Figure 1. Benchmark Factory's GUI
InterfaceRemember, I said that we'd start by looking at some very high
ROI approaches. That means we're looking for items so easy and
apparent in terms of applicability and impact that we only need
observe the runtime differences in the TPC to see if we're on the
right track. So we'll be only looking at what I call the OS and DB
low-hanging fruits.NOTE: If you're positive your Oracle database has been
created perfectly for Linux, you might choose to skip the database
low-hanging fruits section. For many DBAs it might serve as a
refresher of some obvious database configuration and tuning
issues.DB Low-Hanging FruitsLet's begin by looking at a typical initial database. Often,
people start with either the default database created by the Oracle
Installer or a database they created using the Database
Configuration Assistant. Either way, the default settings are
generally quite useless. Plus, a novice DBA or a consultant passing
as a DBA might select values that actually make things worse. The
point is that databases set up with poor initialization parameters
and using dictionary tablespaces as shown in table DB1 are not
uncommon.DB1: Initial DatabaseDatabase Block Size2KSGA Buffer Cache64MSGA Shared Pool64MSGA Redo Cache4MRedo Log Files4MTablespacesDictionaryTPC Results (our baseline)Load Time (Seconds)49.41Transactions / Second8.152The obvious first choice is to increase the SGA size. So we
increase the buffer cache and shared pool as shown in table
DB2.DB2: Cache & PoolDatabase Block Size2KSGA Buffer Cache128MSGA Shared Pool128MSGA Redo Cache4MRedo Log Files4MTablespacesDictionaryTPC ResultsLoad Time (Seconds)48.57Transactions / Second9.147Not quite what we had hoped for; only a 1.73% improvement in
load time and a 10.88% increase in TPS. Okay, so maybe we should
have increased the SGA redo log as well. Of course, we don't want
the redo log file to be smaller than the SGA memory allocation, so
we'll need to bump up the redo log file size to match. This is
shown in table DB3.DB3: Log BufferDatabase Block Size2KSGA Buffer Cache128MSGA Shared Pool128MSGA Redo Cache16MRedo Log Files16MTablespacesDictionaryTPC ResultsLoad Time (Seconds)41.39Transactions / Second10.088Now we're getting somewhere. Notice the load time improved by
10, or by 17.35%. And once again the TPS time improved about the
same amount, 9.33%. This makes sense because the load and
simultaneous inserts, updates and deletes needed much more room
than 8M. But it seems like the memory increases are yielding very
small improvements. The I/O aspect seems to be where the current
problem is. So even though it's an OLTP system, let's try
increasing the block size as shown in table DB4.DB4: 4K BlockDatabase Block Size4KSGA Buffer Cache128MSGA Shared Pool128MSGA Redo Cache16MRedo Log Files16MTablespacesDictionaryTPC ResultsLoad Time (Seconds)17.35Transactions / Second10.179Now we're cooking. Even a PC with its limited bus and I/O
capabilities can reap huge benefits from a larger block size. The
load time improved over 138%, with no detriment to the TPS. For the
moment, let's assume we don't want to try the next block size
increase for whatever reason. The next simple idea that comes to
mind is to switch from dictionary to locally managed tablespaces,
something Oracle has been touting pretty hard. Thus we end up with
that shown in table DB5.DB5: Local TablespacesDatabase Block Size4KSGA Buffer Cache128MSGA Shared Pool128MSGA Redo Cache16MRedo Log Files16MTablespacesLocalTPC ResultsLoad Time (Seconds)15.07Transactions / Second10.425So Oracle is right, locally managed tablespaces are
definitely the way to go. We got over a 15% improvement on the load
and about 2% on the TPS. That's okay, but we would really like to
see more results like those we saw with the 4K block size. So let's
try 8K, as shown in table DB6. It worked before, so maybe it will
work again.DB6: 8K BlockDatabase Block Size8KSGA Buffer Cache128MSGA Shared Pool128MSGA Redo Cache16MRedo Log Files16MTablespacesLocalTPC ResultsLoad Time (Seconds)11.42Transactions / Second10.683Not too bad. As before, the larger block size yielded
improvements to the load (almost 32%) with no detriment to the TPS.
In fact, the TPS improved over 2%. But notice that we have reached
a critical juncture in block size increases. The load time
improvement decreased quite significantly--138% to 32%--and the TPS
gain was nearly three times as much as that of the 4K block size.
Further, block size increases will not likely be a good source of
no-brainer gains (i.e., so obvious that we don't need to use other
performance measuring tools).So we're rapidly approaching the end of the DB low-hanging
fruits. The only other thought that comes to mind is that we have
multiple CPUs, maybe we can set up I/O slaves to leverage them.
It's worth a try and is shown in table DB7.DB7: I/O SlavesDatabase Block Size8KSGA Buffer Cache128MSGA Shared Pool128MSGA Redo Cache16MRedo Log Files16MTablespacesLocaldbwr_io_slaves4lgwr_io_slaves (derived)4TPC ResultsLoad Time (Seconds)10.48Transactions / Second10.717That's another 9% improvement on the load but almost nothing
for the TPS. It appears we've gotten all there is from the
low-hanging fruits. We got improvements of 342% for the load time
and 24% for the TPS; not bad for requiring absolutely no extensive
or detailed performance monitoring. The results are summarized
below.
OS Low-Hanging Fruits
So you've just installed Linux. It's smart enough to
recognize hardware issues, such as the manufacturer, speed and
number of CPUs, the amount of system memory available, and the
type, speed and number of disk drives. Nonetheless, many simple,
no-brainer opportunities for performance improvement remain to be
leveraged. In this case, we'll start on a typical Red Hat 6.2
install. Note that this means that we'll be starting with kernel
2.2.14-5smp, the one that shipped with 6.2.The first thing anyone should do to Linux after the install
is to create a monolithic kernel (i.e., recompile the kernel to
statically include libraries you intend to use and to turn off
dynamically loaded modules). The idea is that a smaller kernel with
just the features you need is superior to a fat kernel supporting
things you don't need. Sounds reasonable to me, so we'll
cd over to /usr/src/Linux and
issue the make clean xconfig command (use
make clean config if you boot to the command
line instead of X).There are literally hundreds of parameters to set, and I
could recommend any one of a dozen good books or web sites to
reference on the subject. Some key ones that stick out in my mind
include CPU type, SMP support, APIC support, DMA support, IDE DMA
default enabled and quota support. My advice: go through them all
and read the xconfig help if you're unsure.Since we know we're going to recompile the kernel, we might
as well fix the IPC (inter process communication) settings, as
documented in the Oracle installation guide. For the 2.2 kernel,
shared memory settings are located in
/usr/src/Linux/include/asm/shmparam.h. I suggest setting the SHMMAX
parameter value to at least 0x13000000. The semaphor settings are
located in /usr/src/Linux/include/Linux/sem.h. I recommend setting
SEMMNI, SEMMSL and SEMOPN to at least 100, 512, 100,
respectively.Now we recompile the kernel by typing make dep clean
bzImage. Copy the link map and kernel image to your boot
directory, edit /etc/lilo.conf, run lilo and reboot. If you've done
everything correctly, the machine will boot using your new, leaner
and meaner kernel.In my case, the monolithic kernel with properly sized IPC
settings improved the load by nearly 10% and the TPS by nearly 8%,
as shown in table OS1.OS1: Mono Kernel & IPCTPC ResultsLoad Time (Seconds)9.54Transactions / Second11.511If simply recompiling a specific version of the kernel can
yield such improvements, then it stand to reason that a newer
version of the same kernel family will also provide improvements.
So I obtained the latest stable kernel source within the same
family from www.Linux.org
(in my case 2.2.16-3smp). But improvements were a paltry 1.5% for
the load and practically nothing for the TPS, as shown in table
OS2.OS2: Newer minor version kernelTPC ResultsLoad Time (Seconds)9.40Transactions / Second11.522Since many Linux distributions now use kernel
2.4.x as their base, it made sense to try this
next. So I downloaded the kernel source 2.4.1smp, and the new
kernel was worth the wait. It yielded improvements of almost 13% on
the load and over 10% on the TPS, as shown in table OS3.OS3: Newer major version kernelTPC ResultsLoad Time (Seconds)8.32Transactions / Second12.815Although these are not bad results so far, in my mind tuning
the OS should provide some big hitters, like those we had with the
database low-hanging fruits. During our low-hanging fruits for the
database discussion, we found that items reducing I/O, such as
block size and locally managed tablespaces, made big improvements.
So the goal is to find a Linux technique to reduce the I/O. That's
when it hit me: there's a dirt simple way to cut the I/O in half.
By default, Linux updates the last-time-read attribute of any file
during a read operation. It also does this for writes, but that
makes sense. We really don't care when Oracle reads its data files,
so we can turn that off. This is known as setting the noatime file
attribute (a similar setting exists for Windows 2000 and Windows
NT).If you want to do it for only the Oracle data files, the
command is chattr +A
file_name. If you want to do
an entire directory, the command is chattr -R +A
directory_name. But the best
method would be to edit /etc/fstab, and for each entry, add the
noatime keyword to the filesystem parameter list (i.e., the fourth
column). This ensures that the entire set of filesystems benefits
from this technique and, more importantly, that the settings
persist across reboots. The results are amazing, improvements of
nearly 50% for loads and 8% for the TPS, as shown in table
OS4.OS4: noatime file attributeTPC ResultsLoad Time (Seconds)5.58Transactions / Second13.884Another area that comes to mind regarding I/O is the Linux
virtual memory subsystem. And as is the beauty of Linux, that too
is controllable. We simply need to edit the /ect/sysctl.cong file
and add an entry to improve filesystem performance, as
follows.vm.bdflush = 100 1200 128 512 15 5000 500 1884
2Where according to
/usr/src/Linux/Documentation/sysctl/vm.txt:The first parameter 100 %:
governs the maximum number of dirty buffers in the buffer cache.
Dirty means that the contents of the buffer still have to be
written to disk as opposed to a clean buffer, which can just be
forgotten about. Setting this to a high value means that Linux can
delay disk writes for a long time, but it also means that it will
have to do a lot of I/O at once when memory becomes short. A low
value will spread out disk I/O more evenly.The second parameter 1200
ndirty: gives the maximum number of
dirty buffers that bdflush can write to the disk in one time. A
high value will mean delayed, bursty I/O, while a small value can
lead to memory shortage when bdflush isn't woken up often
enough.The third parameter 128
nrefill: the number of buffers that
bdflush will add to the list of free buffers when refill_freelist()
is called. It is necessary to allocate free buffers beforehand, as
the buffers often are of a different size than the memory pages,
and some bookkeeping needs to be done beforehand. The higher the
number, the more memory will be wasted and the less often
refill_freelist() will need to run.refill_freelist() 512: when
this comes across more than nref_dirt dirty buffers, it will wake
up bdflush.age_buffer 50*HZ, age_super parameters
5*HZ: govern the maximum time Linux waits before writing
out a dirty buffer to disk. The value is expressed in jiffies
(clockticks); the number of jiffies per second is 100. Age_buffer
is the maximum age for data blocks, while age_super is for
filesystem metadata.The fifth 15 and the last two
parameters 1884 and 2: unused by the system so we don't
need to change the default ones.The performance improvements were 26% for loads and 7% for
TPS. That brings our final results to less than 5 seconds to load
what took 50 seconds and nearly double the TPS rate. And remember,
we never had to monitor anything; these were the no-brainer or
low-hanging fruit improvements.OS5: bdflush settingsTPC ResultsLoad Time (Seconds)4.43Transactions / Second14.988The summarized results were as follows:The second part of this series,
"Linux Maximus, Part 2: the RAW Facts on
Filesystems", is now available.

email: bscalzo@yahoo.com
