The Linux Router

The performance of the Linux router makes it an attractive alternative when concerned with economizing.

Routers are amongst the most crucial components of the Internet, as each bit of information on the Internet passes through many routers. Most of the routers used on the Internet are made by Cisco. Although these have good performance, they come at a high price.

In situations where we need to economize, the Linux router is an attractive alternative. When used as a simple gateway for a LAN, it can be almost free. All that is needed is an old 486DX machine with more than one network interface. A monitor is not always necessary. If used for a sophisticated application you will need a Pentium PI 200MHz MMX, which is costs more but is still three or four times cheaper than a commercial router with comparable functionality.

If one has a small lab with several LANs and wishes to set up a reliable, as well as secure, connection to the Internet, the cost of a commercial router may not be justifiable. The most economical solution in this case is to use a low-cost processor running the LRP (Linux Router Project, www.linuxrouter.org) distribution, which is a networking-centric, micro-distribution of Linux.

LRP is so small that it can safely boot from a single 1.44MB floppy disk. It makes the building and maintenance of firewall, routers, switches, hubs, and so on, cheap and straightforward.

In this article we show how to set up a Linux router for two to four LANs and test its performance under different conditions. All of the work described here was done on Intel PIIIs running at 733MHz. For comparison we also used Pentium Is and IIs. Here we present the results of our investigation into the performance of the Linux router and compare it with a commercial router.

Setting Up a Linux Router

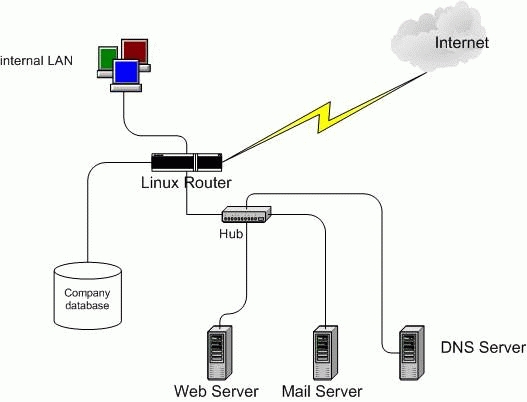

The most common function of the Linux router is a connection between two networks. Typically, this would be a LAN and the Internet. For our experiments, given the unavailability of a connection to the Internet fast enough to stress the router sufficiently, we used a server to simulate the Internet.

For performance measurements, we set up a simple router configuration as follows:

  • Download a copy of the idiot image (lrp 2.9.8). See the Sidebar “Which Disk Image to Use” for details.

  • Extract the image to a floppy disk (1.44MB/1.68MB super-formatted) and make it bootable. The best way to do so is to use WinImage (www.winimage.com).

  • Get the kernel module for the Ethernet card you are using. We used RealTek Ethernet cards with the RTL8139 chipset, so the module we used was rtl8139.o. Add this to your kernel. Your Linux router is now ready for its configuration. See the Sidebar “Adding Kernel Modules for Ethernet Cards” for details.

  • Boot from your LRP disk and open the network.conf file (located in /etc/network.conf). Now modify it so that it looks like Listing 1 [available at ftp.linuxjournal.com/pub/lj/listings/issue100/5826.tgz]. Appropriate comments are there for modifications.

  • Save the changes and back them up. Reboot.

The configuration of the Linux router is now complete. Now we'll describe its performance in different configurations. Because we are not using dynamic routing, we will define static routes in the following experiments according to the configuration of the experiment. Note: after you are done configuring the Linux router, write-protect the floppy disk you are using.

Performance of Linux Router

The test setup in our computer lab uses a 100Base-T Ethernet. The NICs and switching hubs are 100Base-T. All platforms are running Linux 2.2 kernels, and the Linux router is the default gateway for all of them. Performance is measured on different LRP boxes, such as PI 133MHz, PI 200MHz and PIII 733MHz.

Bandwidth Measurement

The first configuration uses one client and one server. We connected the server at the first NIC on the LRP box (eth0) and the client at the second NIC (eth1) through cross-UTP 100Mb cables. Then we set the ipchains rules on the Linux router for forwarding the traffic between client and server by issuing the following command:

ipchains -I forward -j ACCEPT -s 192.168.1.0/24
-d  192.168.0.0/24 -b

We measured the bandwidth of the Linux router when there was traffic flow between the server and the client. See Table 1 for the measurements for the different LRP boxes.

Figure 1. Setup Number One for Measurement of Bandwidth of LRP Box

Table 1. Bandwidth Measurement Results

In this case, the measurements for the Pentium I are misleading, as the bottleneck is the 90Mbps practical limit of 100Base-T Ethernet and not the capacity of the router.

Configuration two was done with one server and multiple clients. We connected a server on the first NIC of the LRP box (eth0) and three LANs through different hubs to the other three NICs respectively. The setup is depicted in Figure 2. The ipchains rules for this setup would look like:

ipchains -I forward -j ACCEPT -s 192.168.0.0/24
-d  192.168.1.0/24 -b
ipchains -I forward -j ACCEPT -s 192.168.0.0/24
-d  192.168.2.0/24 -b
ipchains -I forward -j ACCEPT -s 192.168.0.0/24
-d  192.168.3.0/24 -b
ipchains -I forward -j ACCEPT -s 192.168.1.0/24
-d  192.168.2.0/24 -b
ipchains -I forward -j ACCEPT -s 192.168.1.0/24
-d  192.168.3.0/24 -b
ipchains -I forward -j ACCEPT -s 192.168.2.0/24
-d  192.168.3.0/24 -b

You can write a script to run these rules eliminating the need to enter them at the command prompt every time you boot your LRP box. It should be placed in the root directory so that the user is able to run all the rules by just entering ./filename. We measured the bandwidth of the router when there was traffic between the server and more than one client (clients may be from the same or different LANs).

Figure 2. Setup Number Two for Measurement of Bandwidth of LRP Box

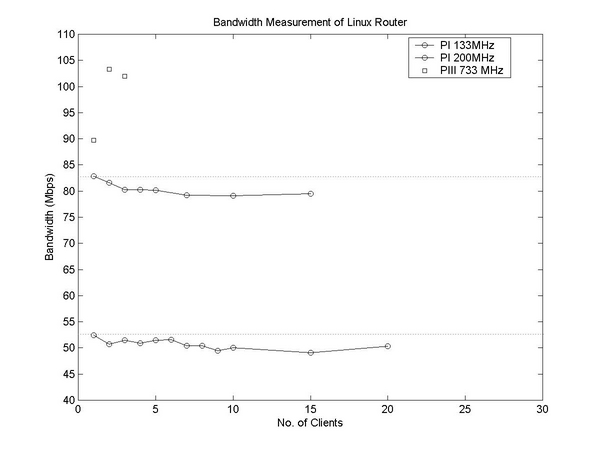

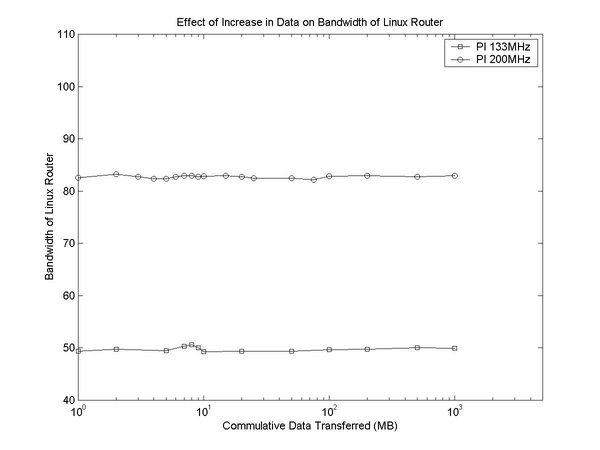

The graph in Figure 3 shows the performance of LRP while routing the traffic between the server and the clients. From this graph we conclude that a PI 133MHz-based Linux router is sustaining a bandwidth of about 51Mbps, and a PI 200MHz-based Linux router is sustaining a bandwidth of about 82Mbps. The measured bandwidth between two platforms that are on the same network segment (say both are at internal LAN1) was found to be equal to 90Mbps. In this case, the router is not involved in the communication. This is direct communication between two computers on 100Base-T Ethernet, start topology, so Ethernet has a practical limit of 90Mbps. The bandwidth of the PIII-based Linux router cannot be calculated due to the limitation of the physical medium of transmission.

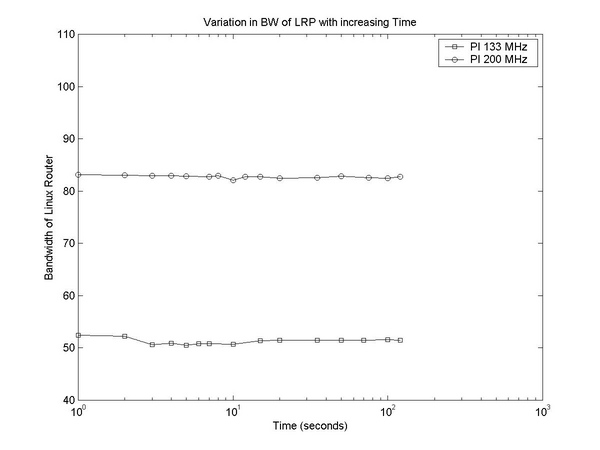

Figure 3. Bandwidth Measurement of Linux Router

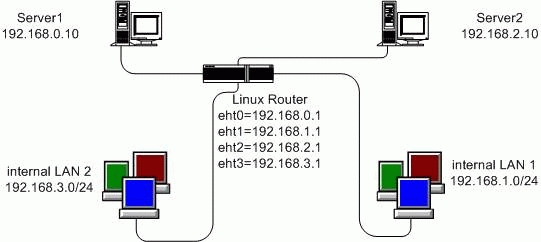

For the third configuration we set up multiple servers and multiple clients (cross-pinging). In this test setup we used two servers connected on eth0 and eth2 of the LRP box.

Figure 4. Setup for Cross-Pinging

A slight reduction (1-2% only) in the bandwidth of the Linux router was observed when there was cross-pinging of packets between server 1 and client 1 and server 2 and client 2, simultaneously.
