Help with Designing or Debugging CORBA Applications

This article explores how I have added
some useful extensions to an open-source protocol analyzer in order
to allow the extraction of OMG IDL (interface definition language)
defined data types from TCP/IP traffic (using GIOP/IIOP). I also
discuss the development and use of a helpful tool (idl2eth) that
can take your own OMG IDL file(s) and generate protocol analyzer
plugins, and lead you through the steps of creating your own plugin
for the CORBA project you are working on.So, if you are designing or debugging a CORBA application
that is using GIOP/IIOP, you can take the CORBA IDL file(s) and
generate plugins that will decode your data and show you what it
looks like "on the wire".This would be most useful for debugging, say, traffic between
a client and server or for learning how OMG IDL data types are
marshaled via CDR (common data representation) Transfer Syntax onto
an octet stream. It also would aid ORB interoperability testing,
especially considering the number of new ORB implementations that
are appearing lately.AcronymsFor brevity, I'll refer to OMG IDL as IDL in this article. It
is important, however, to remember that there are other forms of
IDL besides OMG IDL in use daily. They will not be discussed
here.BackgroundWith the proliferation of so many IP-based protocols in
today's networks, it is hardly surprising that the need arises for
good protocol analyzers. They generally have the ability to monitor
many different types of traffic and to sort or filter them
according to the users' wishes.The resulting data normally is captured (optionally passing
through one or more capture filters) and also displayed (optionally
passing through one or more display filters), so that one can sort
out the interesting packets from the rest.A wonderful example of an open-source protocol analyzer is
Ethereal
(www.ethereal.com). It
is a highly capable analyzer that compiles and runs (thanks to
autoconf) on many flavors of UNIX (including Linux), Windows, MacOS
X, etc.It can capture packets from a number of different types of
networking devices and also can read capture files taken earlier
using either Ethereal or other programs such as tcpdump, snoop and
various other network analyzer programs. The following is a list of
capture file formats it can read (Ethereal's native format is the
libpcap format also used by tcpdump, so captures taken with
Ethereal can be read by other programs that read tcpdump captures,
such as tcpdump itself): libpcap/tcpdump, snoop, Shomiti,
LANalyzer, MS Network Monitor, AIX iptrace, NetXray, Sniffer,
Sniffer Pro, RADCOM, Lucent/Ascend debug output, Toshiba ISDN
router snoop output, HPUX nettl, ISDN4BSD i4btrace utility, Cisco
Secure IDS and pppd log files (pppdump format).Ethereal also understands many different protocols, from AARP
to ZEBRA, and a lot of others in between. I would estimate that it
understands in excess of 200 protocols according to the latest
Ethereal CVS tree.Some of the more common protocols it can decode are DNS
(domain name service), NFS (network file system), Telnet, SMB
(server message block protocol), HTTP (hypertext transfer protocol)
and POP (post office protocol).It also has the ability to follow TCP streams and has useful
filtering capabilities. (For the impatient, you can jump ahead and
look at Figure 4 to see Ethereal in action.) And it has the ability
to incorporate new protocols as either plugin dissectors or
built-in dissectors.Built-in dissectors are compiled as part of the Ethereal
binary, whereas a plugin dissector is a shared library and loaded
at runtime. This helps keep the Ethereal binary down to a
reasonable size and also allows protocol dissection code to be
distributed as a shared library if you wish. It also means, because
its a shared lib, if you modify the plugin and run make again, the
Ethereal binary is not recompiled, and this saves a lot of
time.MotivationLike most things in life, it is when we are faced with a
problem to solve that we seek out solutions. For our staff at
Ericsson Inc., based in the Telecom Corridor in Richardson, Texas,
we were interested in debugging some CORBA traffic on the wire to
support our R&D efforts involving CORBA applications.I was already familiar with Ethereal and saw that some
initial code to decode the GIOP header information was present in
Ethereal, but that it had progressed no further. This is partly due
to the fact that once the header information is decoded, then the
payload is highly dependent on which CORBA operation is being
called at that time. The operations that, for example, a CORBA
server (or servant) provide are defined using OMG IDL.OMG IDL OverviewOMG IDL is a declarative language used to describe one or
more interfaces that CORBA object implementations provide. You
don't write applications using OMG IDL, but you describe interfaces
that objects support. The syntax of OMG IDL is not too difficult to
understand. Here is a simple example:

module example{
   interface demo {
      short getSize();
                  };
              };

This says an object that supports the demo interface from the
module example provides an operation called getSize. It takes no
arguments and returns a value of type "short". OMG defines the
integer data type short as a 2 octet value (see CORBA ref Chap
15).A slightly more detailed example would be:

module example {
   interface Penguins {
      enum Food {squid, krill, fish, rock_crab};
      typedef Food Food_t;
      Food_t favouriteFood();
                      };
               };

This says that an object supporting the Penguins interface
from the module "example" provides an operation called
favouriteFood(). It takes no arguments and returns a value of type
Food_t. Of course Food_t is a typedef of Food, which is an
enumeration. Typedef and enum may be familiar to you already from
other language implementations (C, C++, etc.).IDL files for real-world applications will be far more
complex than this and may include structs, sequences, exceptions
and a host of other IDL types. I urge readers to visit the OMG site
(www.omg.org) and grab a
copy of the CORBA specification. It is available in a number of
different formats.So what can you do with all this OMG IDL? Here's where IDL
compilers enter the picture.IDL CompilersThere are a variety of IDL compilers in existence today. They
normally include a particular ORB implementation. You can see a
reasonable list of them by doing a Google search using "linux
corba".Some examples of IDL compilers are listed below. This list
represents just a small percentage of the ever-growing IDL compiler
family: omniidl from the omniORB distribution, idl2java from
Visibroker, idlj from Sun's J2SE v1.3 release and tao_idl from TAO
distribution. There are many more of course, as you can see by
doing a quick Google search.IDL compilers can do a lot of useful things. Some of the more
important tasks include verifying correct syntax of the IDL file(s)
being read, generating target code for a variety of languages
(Java, C, C++, Lisp, Python, etc.), producing client stubs and
producing object skeletons.The one that interested me was omniidl. It consists of the
compiler front end and allows you to write compiler back ends to
suit your particular task.One of the things I liked with omniidl was that you write the
back end in Python and access tree data structures (representing
the parsed IDL) via a nice API. With this in mind, let's see how
CORBA GIOP messages are structured so we know how to decode
them.CORBA GIOP MessagesThankfully there are just a handful of GIOP messages used to
allow client/server interaction. They also are defined using OMG
IDL and belong to the GIOP module. You can see them described in
detail in Chapter 15 "General Inter-ORB Protocol" of the CORBA
specification:

• Request: used for attribute accessor operations and
  for CORBA object invocations.
• Reply: the response to a Request message, if the
  response expected flag is TRUE in the Request message.
• LocateRequest: used to determine if the current
  server can handle requests directly or to find out where the client
  should send requests for a given object reference.
• LocateReply: the response to the Locate Request
  message.
• CancelRequest: tells the server that the client is
  no longer expecting a reply to a specific Request or LocateRequest
  message.
• MessageError: sent when the recipient does not
  recognize the version number or message type of the specified
  message, or that the message header is not correctly formed.
• Fragment: used to support fragmentation of Request
  and Reply messages (e.g., when a Reply message carries a lot of
  data that could not be sent in the original Reply message).

How Do OMG IDL Types Get Marshaled?To find out how OMG IDL types get formatted on an octet
stream, there are detailed rules defined in CDR transfer syntax and
also in the CORBA specification. I will not delve too deeply into
this other than to say that alignment of data types are, on their
natural boundaries, relative to the beginning of the octet stream
or start of an encapsulation.Table 1 shows these alignment restrictions for some of the
more commonly used types. Note, there are a lot more types defined
in the CORBA specification than are shown here.Table 1. Alignment Restrictions for Commonly
Used TypesOMG IDL TypeOctet Alignmentchar1octet1(unsigned) short2(unsigned) long4float4double8enum4boolean1So, with all these rules, how can we decode GIOP/IIOP
messages? Let's add a GIOP API to Ethereal that understands these
rules.Adding GIOP API to EtherealTap tap tap (and some time later...) packet-giop.[ch] from
the Ethereal distribution was upgraded to provide an API, with
accessors like

gint16 get_CDR_short(tvbuff_t *tvb, int *offset,
    gboolean stream_is_big_endian, int boundary);

and

gint32 get_CDR_long(tvbuff_t *tvb, int *offset,
    gboolean stream_is_big_endian, int boundary);

where tvb is a ptr to a tvbuff_t type containing octets (in a
buffer), offset is a ptr to an offset with the tvb,
stream_is_big_endian is endianess to use for extracting data types
(big endian or little endian) and boundary is alignment to use for
extracting data from the tvb.You can see that get_CDR_short() returns a gint16, and
get_CDR_long() returns a gint32. These types are defined as part of
the glib library (see Resources) and are used extensively
throughout the Ethereal source. These data types are then added to
the Ethereal GUI as an item attached to a tree or subtree.There are, however, some OMG IDL types that are quite complex
and handled slightly differently. One example of a complex type
would be Object Reference:

/*
 * Decode an Object Reference and display it
 * on the tree.
 */
void get_CDR_object(tvbuff_t *tvb, packet_info *pinfo,
                   proto_tree *tree, int *offset,
                   gboolean stream_is_big_endian,
                   int boundary);

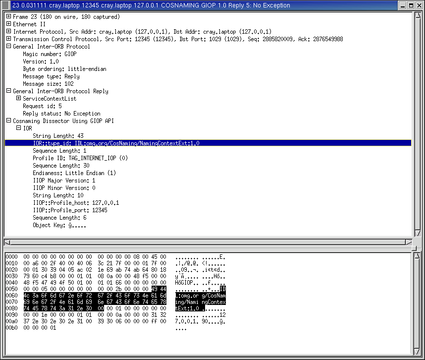

An object reference in CORBA can be represented as an IOR
(Interoperable Object Reference) when being passed over GIOP/IIOP.
These types can be rather large, as shown in Figure 7. For this
case, the get_CDR_object() accessor simply will add the decoded
data inside an IOR, directly to the tree, rather than trying to
pass some complex data structure back to the user.Now Ethereal has functionality to pull OMG IDL defined data
types from GIOP/IIOP messages. You could build a plugin manually
using this new API, but wouldn't it be fun to generate one
automagically from your own IDL files?Tap tap tap (and several weeks later)...enter idl2eth, an OMG
IDL to Ethereal plugin generator.idl2ethidl2eth is a compiler back
end to omniidl that I wrote (in Python) to automate the process of
generating an Ethereal plugin based on the user's OMG IDL
file(s).So now that we can generate a plugin from an OMG IDL file,
let's do it (after all, that's what this article is about).I develop and run all examples on a Red Hat 7.1 with the
2.4.3-12 kernel, but most recent Linux distributions should have
the required tools already installed. The only extras may be the
latest Ethereal src tree (download nightly CVS tarball), omniOrb,
J2SE v1.3 and JacORB or similar to test the examples. I assume you
are capable of compiling and running the JacORB examples. Please
ensure you can compile and run the JacORB examples before
proceeding any further.The steps for creating your new plugin are pretty simple, so
let's work though them. For the purpose of this example, because
the OMG IDL file for our example is called server.idl, we will use
"server" as the plugin name also, to be consistent.First you should see that you can build Ethereal before
adding your own plugin. Unpack a recent Ethereal nightly CVS
snapshot tarball:

tar -zxvf ethereal-2001-09-17.tar.gz
cd ethereal-2001-09-17

Next, run ./autogen.sh. Compile the source
tree with make and install Ethereal. This will
install Ethereal and other helper programs. It also will install
man pages and plugins. Make sure you are root when you do
make install.You now should have Ethereal successfully installed on your
system. So, let's build a GIOP plugin. First, generate plugin
source code from a JacORB example and store the output in
Ethereal's plugin/giop/ directory:

idl2eth ~/JacORB1_3_30/demo/grid/server.idl > plugin/giop/packet-server.c

Next, add packet-server.c to plugin/giop/Makefile.am. This is
mainly a cut-and-paste exercise that should take about one minute
to do. Just look at what the other GIOP plugin entries for
cosnaming and coseventcomm look like:

• Add server.la to plugin_LTLIBRARIES.
• Add server_la_SOURCES entry.
• Add server_la_LDFLAGS entry.
• Add server_la_DEPENDENCIES.
• Add server to CLEANFILES.
• Add packet-server-static.o entry.

Then add packet-server.c to plugin/giop/Makefile.nmake. This
too is mainly a cut-and-paste exercise similar to the previous
step:

• Add packet-server.obj to OBJECTS.
• Add entry for server.dll.
• Add server entry to clean: target.

Run ./autogen.sh again to include our
changes. Compile the source tree with make. You
should see your new plugin being compiled as a shared library. This
part will be quicker, as we are not rebuilding the entire Ethereal
binary this time. Install the new Ethereal build containing your
plugin. Make sure you are root when you do make
install.That's it. Now you can fire up Ethereal and check some CORBA
logfiles containing the IDL operations logged when running the
JacORB demo/grid example. You can decode existing capture files as
a normal user. Or if you have root privileges, run Ethereal as root
to capture live data from a network interface. In my case I
selected "lo" (loopback) net device, as I was running JacORB

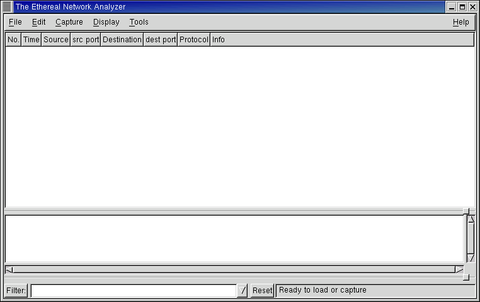

examples entirely on my local machine:ethereal &You should be presented with a window that looks something
like that shown in Figure 1.
Figure 1. The Ethereal Network
Analyzer
Select Capture from the main menu and then Start to bring up
the Capture Preferences window. The Interface option is a drop-down
selection list. Go ahead and select lo if you run Ethereal, JacORB
nameserver and its examples all on the same host. You also can
disable "Capture packets in promiscuous mode".To see if your new plugin is available, try one or both of
the following:

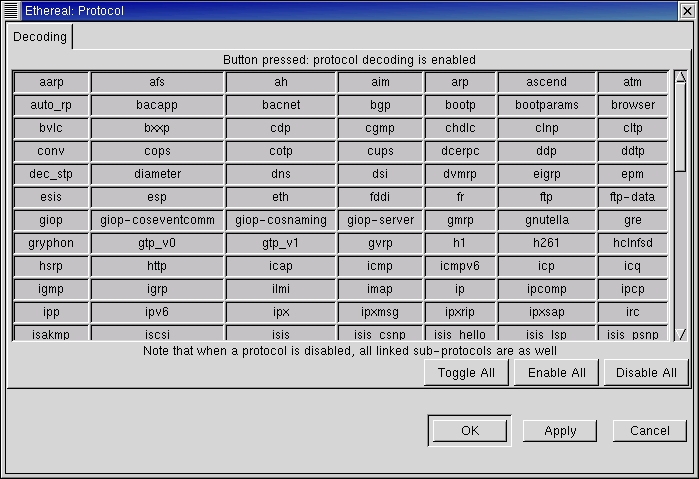

1. Select Edit and then Protocols. You should see
   giop-server is present (Figure 2) and that it can be toggled on or
   off. By default, it is on.

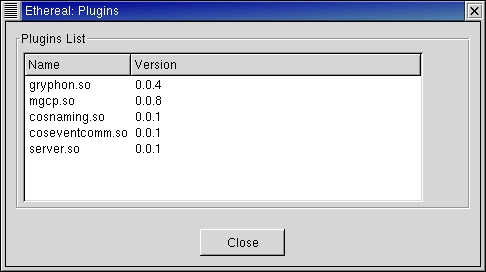

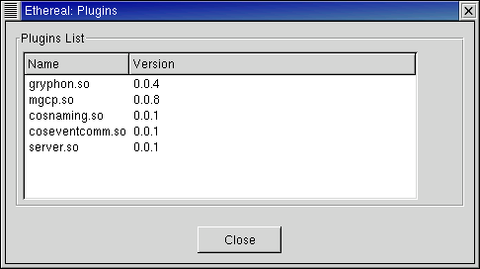

2. Select Tools and then Plugins. This should list the
   available plugins that Ethereal is using. It should look like the
   list in Figure 3.

Figure 2. Ethereal Protocol

Figure 3. Available Plugins
Using the New PluginWhat follows now is an example of using our new plugin to
monitor some CORBA GIOP/IIOP traffic generated by JacORB and its
examples. I assume you can run these examples already (i.e.,
already compiled and set Java's CLASSPATH etc correctly).In a new xterm, start the JacORB nameserver:

ns public_html/NS_Ref &
[2] 1850
JacORB V 1.3.30, www.jacorb.org
       (C) Gerald Brose, FU Berlin, 13 June 2001
[ POA RootPOA - ready ]
[ POA NameServer-POA - ready ]

Next, start server for demo.grid example:

jaco demo.grid.Server & [3] 1890
JacORB V 1.3.30, www.jacorb.org
       (C) Gerald Brose, FU Berlin, 13 June 2001
[ POA RootPOA - ready ]
[ New connection to 127.0.0.1:1295 ]
[ Accepted connection from 127.0.0.1:1298 ]
[ Bound name: grid.example ]

The Ethereal Capture Summary window will show what type of
traffic is being captured (e.g., UDP, TCP).Run demo.grid client, as shown here:

[frank@cray frank]$ jaco demo.grid.Client
       JacORB V 1.3.30, www.jacorb.org
       (C) Gerald Brose, FU Berlin, 13 June 2001
[ New connection to 127.0.0.1:1295 ]
[ Accepted connection from 127.0.0.1:1327 ]
[ New connection to 127.0.0.1:1307 ]
[ Accepted connection from 127.0.0.1:1328 ]
[ New connection to 127.0.0.1:1307 ]
[ Accepted connection from 127.0.0.1:1329 ]
Height = 31
Width = 14
Old value at (30,13): 0.21
Setting (30,13) to 470.11
New value at (30,13): 470.11
MyException, reason: This is only a test exception,
no harm done :-)
[ Closing connection to 127.0.0.1:1307 ]
[ Closing connection to 127.0.0.1:1295 ]
done.
[ Closing connection to 127.0.0.1:1327 ]
[frank@cray frank]$ [ Closing connection to 127.0.0.1:1329 ]

Now, stop data collection in Ethereal. Press the stop button
on the Capture window. Notice that you should have seen some

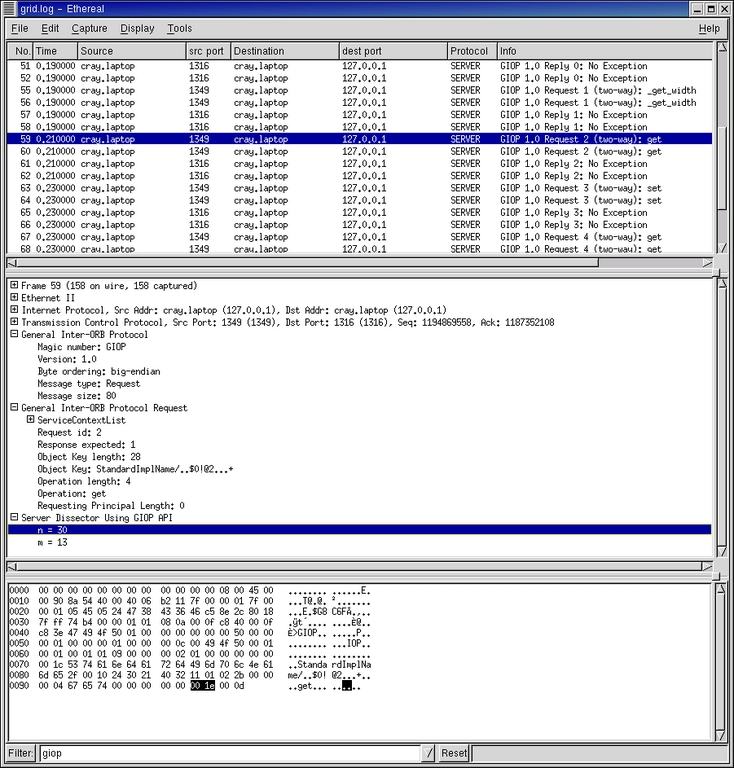

traffic by now.Back in the main Ethereal GUI you should see three window
panes, as shown in Figure 4. The top pane is a summary of traffic,
showing Frame number, Time, Source and Destination, then Protocol
and Info fields. The middle pane will contain a tree-like structure
with all the layers of protocols. When you click on a packet in the
top pane, its structure should be shown graphically in the middle
pane. The lower pane provides a raw hex dump and highlights which
octet(s) are related to whichever field you click on in the middle
pane. This is a great feature. To the right of the hex dump you
will see an ASCII dump for whichever characters are
printable.
Figure 4. Summary of Traffic, Layers of Protocols
and a Raw Hex Dump
You may have quite a bit of traffic, only some of which is
GIOP. In order to select only GIOP traffic, we can apply a Display
Filter.In the bottom left-hand corner type giop
in the Filter entry box (see Figure 4), and press Enter on the
keyboard. You should be looking at GIOP/IIOP traffic only.Stepping through Our Captured ExampleNow it's time to see in more detail what type of data is
present in the GIOP/IIOP traffic and to see the relationship
between IDL definitions and how it is marshaled via CDR Transfer
Syntax rules onto TCP/IP.Let's take a look at IDL file that represents the demo.grid
example. It should look something like this:

  1     // grid.idl
  2     // IDL definition of a 2-D grid:
  3
  4     module demo
  5     {
  6     module grid
  7     {
  8         interface MyServer
  9         {
 10             typedef fixed <5,2> fixedT;
 11
 12             readonly attribute short height;
 13             readonly attribute short width;
 14
 15
 16             void set(in short n, in short m, \
                     in fixedT value);
 17
 18             // return element [n,m] of the grid:
 19             fixedT get(in short n, in short m);
 20
 21             exception MyException
 22             {
 23                 string why;
 24             };
 25
 26             short opWithException() \
                   raises( MyException );
 27
 28         };
 29     };
 30     };

Let's quickly step through and make sure we understand it.
Interface demo/grid/Myserver contains two attributes, "height" and
"width"; and it contains three operations, set(..), get(..) and
opWithException(..). Exception MyException contains one member,
"why", which is a string.We also see a typedef at line 10 that uses a "fixed" type.
This means that, for example, the "in" parameter called "value" in
line 16 could be a value like 123.45 or -987.65, i.e., five digits
with two digits after the decimal point.Now, let's take a look at some of these and see how they look
on the wire.Example one: remember this operation definition from line
19:fixedT get(in short n, in short m);If you look at Figure 4 you can see both of the "in"
parameters, i.e., parameters "n" and "m" are of type "short", so
each is two octets in length. The "n" parameter has value of 30,
and if you look at the hex dump in the bottom pane you can see "00

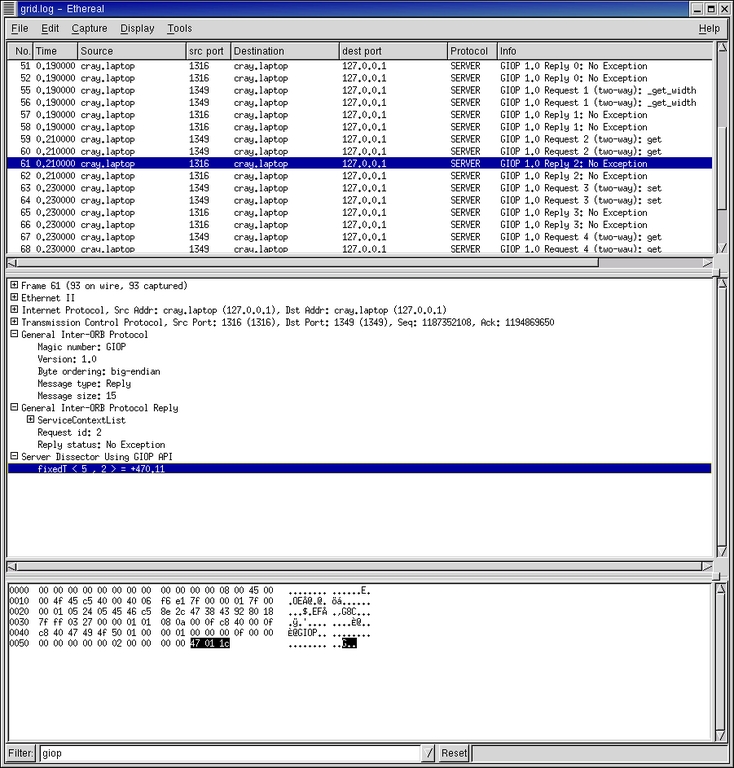

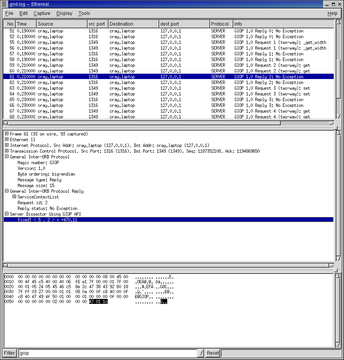

1e", which is the hex value for 30.Example two: using the same operation definition from example
one, let's look at the return value for this operation. It is of
type fixedT, which is a typedef of a fixed type. You can see the
return value in Figure 5. It occupies three octets, in this case 47
01 1c. These three octets map onto a value of +470.11, which is
shown highlighted in the middle pane.
Figure 5. Return Value (See Example
Two)
Example three: if you remember the operation definition for
opWithException(), you see that it can raise an exception.
According to the IDL, this exception MyException contains one

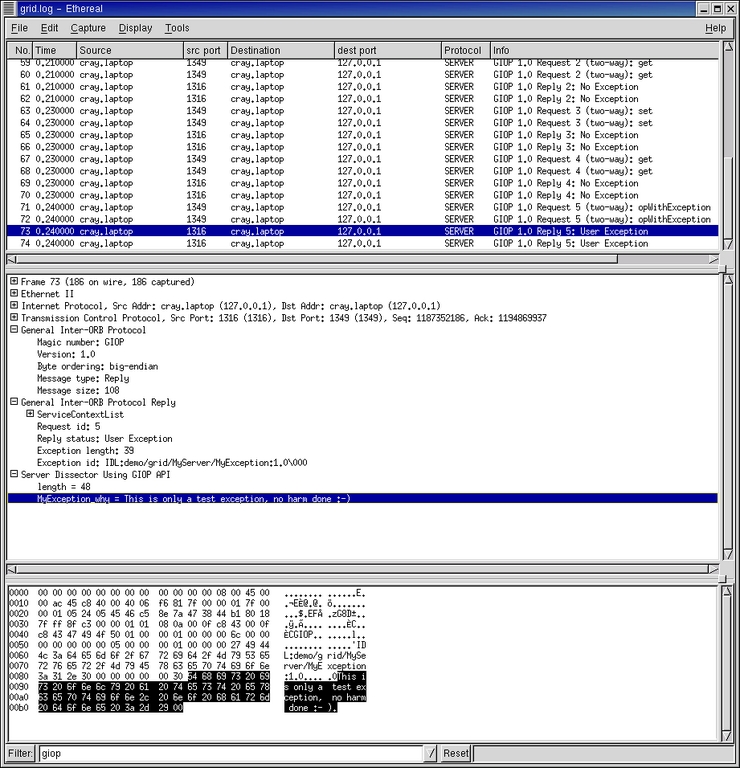

member, a string.In Figure 6, you can see a GIOP reply message that contains
this exception: a string, of length 48, with the text This
is only a test exception, no harm done :-).
Figure 6. GIOP Reply Message
Example four: although from a different capture, I have
included an example of an operation decoded according to a plugin
generated from CosNaming.IDL (see Figure 7). Here you can see an
IOR and its structure. IORs can be much larger than this.
Figure 7. Example of an Operation Decoded According
to a Plugin Generated from CosNaming.IDL
ConclusionThe aim of this article was to introduce you to generating
CORBA GIOP/IIOP plugins for Ethereal using the new GIOP API
recently implemented and also, to show how to generate compilable
plugins (using idl2eth) for your project with a minimum amount of
work.We will continue developing the CORBA side of things within
the Ethereal Project to improve areas such as operation, name
collision and FRAGMENT handling.Hopefully readers will find these enhancements to a great
open-source project as useful as I did.ResourcesUseful LinksEthereal:
www.ethereal.comglib:
developer.gnome.org/doc/API/2.0/glib/index.htmlJ2SE:
java.sun.comJacORB:
www.inf.fu-berlin.de/~jacorbLinux DCE, CORBA and DCOM Guide:
linas.org/linux/corba.htmlOMG:
www.omg.orgomniORB:
www.uk.research.att.com/omniORB/omniORB.htmlTAO:
www.cs.wustl.edu/~schmidt/TAO.htmlReferencesCORBA v2.4.2 Specification, OMG,
February 2001.Ethereal User's Guide:
www.ethereal.comJava Programming with CORBA, 3rd Edition
by Gerald Brose, Andreas Vogel and Keith Duddy. Wiley, 2001.AcknowledgementsI would like to acknowledge the help and assistance of the
following people: Lalin Sourjah (Manager, BSS, ASO Americas) for
fostering a creative work environment for us at Ericsson Inc.,
Trevor Shepherd (Senior Software Engineer, Ericsson Inc.) for
assistance with GIOP API development, Gerald Combs (original
Ethereal author) and all of the Ethereal developers for their
support and constructive feedback. It was most welcome.Frank C. Singleton
(VK3FCS/KM5WS) works for Ericsson Inc., based in Richardson, Texas.
His main roles are GSM software verification and troubleshooting.
He is one of the founding members of hamlib
(sourceforge.net/projects/hamlib).
When not hacking, he usually is found making furniture in his
workshop.

email: frank.singleton@ericsson.com
