Boa: an Embedded Web Server

Most of the world thinks of a web server
as something on the Internet that can help find a football score,
access a bank account or find an airplane flight. That's well and
good but, in the embedded world, there are lots of places where a
web server could come in handy. A common example is a
network-connected printer. Being able to inquire about the status
of the printer is useful, and if a small enough web server is
available, it could offer a convenient interface.
This isn't just theory. Tektronics, for example, includes a
web server in its 780 color laser printer. Their server allows you
to configure the printer, access documentation, inquire about
printer status--including toner levels--and includes links for
ordering supplies. I am sure the cost of the web server is offset
by supplies revenue and decreased support costs.The most popular web server for traditional web sites is
Apache. Apache is full-featured, very configurable and very
reliable. It has proven itself in the general-purpose web server
market and has been adopted by major players, including IBM.Apache's design requires it to spawn (fork and exec) a
separate task for each simultaneous connection. This is not
necessarily a bad design, but in the embedded world, it is likely
that you will need something that uses fewer resources--an average
memory footprint in the tens of thousands of bytes rather than in
the megabytes, for example.Enter BoaBoa is a tiny web server that also offers extremely high
performance. It is specifically designed to run on UNIX-like
systems, which includes Linux, as well as the *BSD systems. To get
all the legal stuff out of the way, Boa is available for free and
is covered by the GNU Public License (GPL). The source code for
Boa, as well as documentation, can be found at
http://www.boa.org/.The following point taken from the Boa web site shows why I
have decided to write about Boa:Boa currently seems to be the favorite web server
in the embedded crowd, and embedded Linux, despite all the
marketing hype, really is a big deal. Supposedly, an older version
of Boa, v0.92q, runs in 32K address space on m68k, like used in
uClinux. See
http://www.uclinux.net/.Unlike traditional web servers, Boa is single-tasking. What
this means is that it internally multiplexes all of the ongoing
HTTP connections rather than the more traditional forking of
multiple copies for each connection. It must, of course, fork
separate processes to execute CGI scripts, but that is well defined
and under the control of the system designer.
My use of Boa has been to handle very low-volume HTTP
connections on the order of a few hundred to a few thousand pages
served per day. The Boa web page, however, claims that tests show
Boa capable of handling several thousand hits per second on a
300MHz Pentium and dozens of hits per second on a 20MHz 386/SX.
Thus, for most applications, it's unlikely that performance is
going to be an issue.Of course, in an embedded application, it is likely that the
primary job of the processor will be handling something other than
running a web server. What this means is that running Boa is not
likely to significantly decrease the resources available for the
primary purpose of the embedded CPU.This small size and high performance doesn't come for free.
However, what Boa doesn't do generally woudn't be missed for an
embedded system. Here is the short list:

• The REMOTE_HOSTNAME environment variable is not
  set. What this means is that a CGI program doesn't have the name of
  the accessing host available. The REMOTE_ADDR variable is
  available, so if the CGI program actually cares, it can do its own
  lookup.
• Boa does not support server-side includes. SSI is
  slow because the text of each requested document must be searched
  for each request.
• The ability to change root directories (chroot) is
  not available.
• Rather than offering access control features, Boa
  just uses Linux/UNIX filesystem permissions to determine what can
  be served. This is generally not a problem as Boa can be configured
  to run as any user ID you desire.

Setting up BoaBecause Boa is so compact, it is also very easy to install
and configure. The details are on the Boa web site, but if you are
familiar with installing typical tarballs, Boa will be no surprise.
The basic steps are:

• Download the software.
• Unpack using tar xvzf.
• Optionally edit the defines.h file in the src
  directory to change the default SERVER_ROOT. This isn't mandatory;
  you can also specify the server root on the command line when you
  start Boa.
• Run the configure script
  (./configure) and then type
  make to build the executable. Recently, I built
  Boa on my laptop. The make step took less than 11 seconds.
• Edit the configuration file, boa.conf, to set up
  your local configuration.
• Make sure the appropriate directories (such as the
  log directory) exist and have the proper permissions.
• Start Boa from the command line. Use the -c
  command-line option to specify the server root if you didn't set
  SERVER_ROOT to the desired directory location in define.h.

That's it. You should have a working version of Boa. Point
your web browser at it and see what happens. If it doesn't work,
check the error_log file.
More Configuration OptionsOnce you have the basics running, check out the config file
(boa.conf) for additional configuration options. Here is a quick
summary of the most important. The config file is well commented so
if you don't see what you need here, read the comments for
additional options.

• Port allows you to
  specify the port to listen on. The default is 80, which is the
  standard HTTP port. For any port less than 1024 you must start Boa
  as root.
• By default, Boa binds to all IP addresses. This
  means that any request that comes into the system on the specified
  port is served by Boa. If this isn't acceptable, you can use either
  the VirtualHost directive to point different requests to different
  files, or you can run individual copies of Boa for each IP
  address.
• User and
  Group allow you to specify the
  name of the user and group Boa runs as. Normally you would start
  Boa as root, and then once it configures itself, it changes to run
  as the specified user and group.
• ErrorLog and
  AccessLog allow you to specify
  where the log files are located. If you comment out the
  AccessLog line, no access log will
  be created.
• DocumentRoot
  specifies the root directory of the HTML files.
• UserDir specifies
  a directory name that can be appended onto a user's home directory
  to locate web pages accessed by using ~user in the URL.
• DirectoryIndex
  specifies the name of the index file. This is traditionally
  index.html.
• DirectoryMaker is
  the path to the program used to create index listings. Comment this
  out if you don't want to allow directory listings.
• Alias is used to
  specify a redirect, allowing a specified URL to access a page in a
  different location. Multiple Alias directives are allowed.
• ScriptAlias is
  used to specify where CGI scripts can reside. Essentially, this
  allows a shorthand in the URL for locating the scripts.

ConclusionIn order to test Boa I created two files: one HTML file
(Listing 1) and a CGI script written as a shell script (Listing 2).
Figure 1 shows what is displayed by the HTML script, and Figure 2
shows what is displayed by the CGI script. Note that I created
these scripts using vi. If you
would rather use an editor specifically designed for creating HTML,
many are included with every Linux distribution. For example,
KWebDev is one of the many included with KDE. WebMaker is
another.Listing 1. HTML Test
PageListing 2. Shell Script to Test
CGI

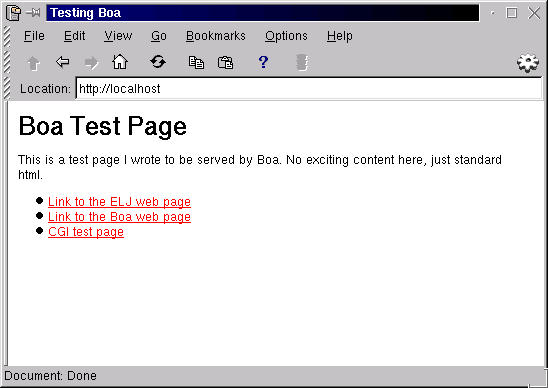

Figure 1. Screenshot of What the HTML Script Displays

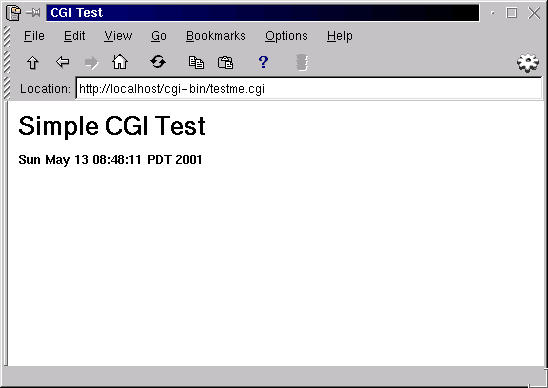

Figure 2. Screenshot of What the CGI Script Displays
The only problems I encountered were mistakes on my part with
configuration parameters and file locations. Once I got everything
in the right place, Boa performed as expected. If you have the need
for a web server in an embedded product, Boa offers a great
choice.
