Developing C/C++ Applications with the KDevelop IDE

The aim of this article is to enable you
to create an application with the KDevelop Integrated Development
Environment (IDE) on a Linux/UNIX system running KDE 2. We explain
this process by creating a sample application that gives some
insight into the development framework and how it works. This might
require getting your development environment set up correctly, so
that you can work efficiently when getting started with your very
own application or extension for the KDE 2 Desktop.What Is an IDE?An IDE provides the user with a complete set of tools that
integrate into one graphical environment. It's an enormous bonus
for developers if the environment remains flexible enough to handle
things separately or outside of the IDE, so they are not forced to
use the IDE's features where they think other tools are more
appropriate.Although IDEs on other platforms, especially on Microsoft
operating systems, come with all the tools bundled into one
package, it's very different on a UNIX system. With UNIX, the
compiler, which is needed to create applications from the
programming code that can be run on a machine, is part of the
operating system. Various tools that can be used in conjunction
with the compiler, like make or the GNU tools, are delivered as
separate packages, and an IDE makes use of these tools
internally.The KDE Project, comes with an IDE called KDevelop. This IDE
can be used on any UNIX system to develop software, especially KDE
software, but not limited to it. Many experienced UNIX programmers
use it for plain C and C++ programming.Setting Up Your Development EnvironmentIf you're using a popular Linux distribution, you should
encounter few problems when setting up the IDE; especially when it
already ships with KDevelop and takes over the installation of all
the tools needed. What you need, in any case, is a C/C++ compiler,
such as the current version of gcc that ships with current
distros.The next task is installing the GNU tools autoconf and
automake and the package-building utility make.For finding program errors, you need to install a debugger
installed, which is called gdb, the GNU debugger. To complete your
environment, the version control management utility, CVS, can be
helpful, as well as source code documentation software, such as
kdoc and doxygen.The last package you need is KDevelop itself; it can be
downloaded from the KDE web site at
www.kde.org or from your
distribution's web site.If these requirements are all met, you still might be missing
at least one very important part of your development environment,
especially for KDE programming: the header files of the libraries
that you intend to use. These files contain the API (application
programming interface) that the compiler needs to have in order to
look up which functionality you want to use while compiling your
application.The header files (also known as include files) should be
located in your $KDEDIR/include (KDE header files) and your
$QTDIR/include (Qt header files) directories. Make sure you have
these installed; usually they're in packages with names such as
kde-devel and qt-devel.Further, there is the Qt Designer, a graphical user interface
builder that is easy to use and works together with KDevelop to
create KDE/Qt applications, so make sure that you have it installed
as well.Note: the KDEDIR and QTDIR environment variables should point
to the directories where your KDE 2 and Qt 2.x installations are
located, e.g., in your ~/.bashrc: export KDEDIR=/opt/kde2; export
QTDIR=/usr/lib/qt-2.3.0.Make Yourself ComfortableAs a programming beginner, it is crucial to have a successful
experience. Let's start with creating your first KDE application.
Open up KDevelop and make yourself comfortable with the
environment.In the treeview on the left side, you should see some books
that you can unfold and that contain documentation included with
KDevelop--almost 500 pages that can help you in almost every
development situation. The second folder in that tree contains
books with the API documentation of the Qt and KDE
libraries.In case you don't see them, set the appropriate paths in
KDevelop through Options-->KDevelop Setup in the Documentation
section. The other windows in the treeview will be used during
development, and we will refer to them later. The right-hand window
contains three tabs: two editor windows and a browser window, which
will display the HTML documentation you select on the left treeview
(see Figure 1).
Figure 1. Welcome to the Desktop
The window on the bottom will be used to inform you about
what your environment is currently doing; it will show the compiler
output later on and display any error messages.The Example ApplicationFor this article, I've tried to come up with a useful example
that will be simple to follow but still complex enough to provide
the facilities to enhance it on you own at a later time.To build something unique I thought about my early days with
UNIX--I had a total lack of understanding of what an environment
variable was. Every book maintained it, but I just didn't
understand its simplicity.Now, I don't want to make any assumptions about whether all
readers know this, so, as a basic explanation, an environment
variable is just a name that the shell, say bash, interprets as a
synonym. A well-known variable is the PATH variable that contains
all the directories containing programs that you want to call
directly, without the directory name. Other good ones are the
KDEDIR and QTDIR variables. To set these up permanently, edit your
.bashrc (assuming your shell is the bash shell) located in your
home directory. A little frontend that will give you an insight as
to what your current values are, and being able to add or edit
these and even to disable/enable them would be great.Creating ProjectsTo start your very first project, select Project-->New

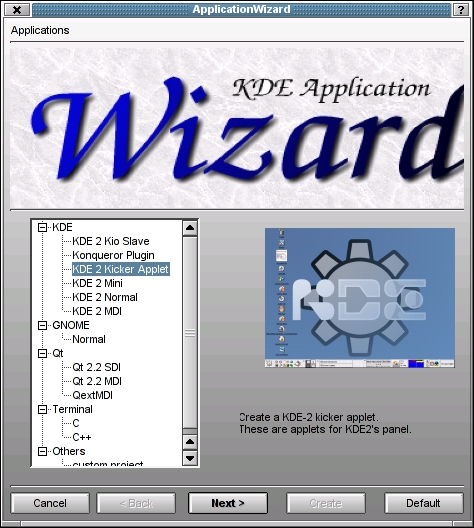

Project from the menu. You'll then see the KDE Application Wizard
(Figure 2).
Figure 2. KDE Application Wizard
Here, you're offered a whole variety of application
templates. First, a whole set of KDE application and library types,
a simple single-window application (KDE2-Mini), a full-featured
framework application containing a menubar, toolbar and statusbar
(KDE2-Normal), and another one using the MDI (multiple document
interface) system. There are also templates for a KDE panel applet,
a Konqueror/KParts plugin using the KDE 2 component system, and a
KIO-Slave component that utilizes KDE 2's architecture to define a
protocol and write a handling implementation based on the KIO
library. Examples are the HTTP and the FTP I/O-slaves among others,
but as a user you're already familiar with these if you're using,
for example, KDE 2's filemanager and the Konqueror web
browser.Other project templates you'll find here are Qt-only
application types, a GNOME template for programming with the GTK+
toolkit and plain C and C++ templates for writing console
applications. Select the KDE 2 Mini application type as your first
step in our example application; then click on the Next button on
the bottom of the page to go to the next step. Here, enter the
project name in the first edit line. As we want to write a good
sample application that can be of some use later on, we should
first think about a useful name.As most KDE applications start with a K, like Konqueror or
KMail, let's choose KEnvEdit as the project's name. The rest of the
page should be filled out already; if not, please fill in the empty
fields for your name and e-mail address. These should be filled out
because all files will contain your name and address, so that
everyone knows that this code is copyrighted by you. Press the
Create button to generate the project. When the build process is
finished, you can leave the wizard by selecting Exit.KDevelop will now load the new project; in fact, you're ready
to start off with actual code. As a short test, press the button
that looks like a wheel on the toolbar; this will compile your
application and run it for a test.The compiler will show all the messages in the output window.
This is important to know in case you run into compiling errors.
When everything is working, either close the application window or
press the Stop button in KDevelop. On the left you can see that
your IDE contains a class browser that displays the contents of
your source files sorted by their class and function names.Make yourself comfortable with browsing the three files of
your application that you already have: the KEnvEdit class
declaration, the implementation heads for the constructor and
destructor and the main() function.Next, we will create the graphical user interface for our
program. This is the fun part of application construction, so let's
move on.The Qt DesignerAfter you've finished with generating the project, your
graphical user interface is far from being complete--it consists of
a single, empty mainwindow. We will extend this by designing the
user interface of the main dialogue with the Qt Designer, so please
make sure that you have it installed and working (click on the
Dialogeditor button for a test; the Designer should come up). Then,
select File-->New in KDevelop. The new file dialogue will have
some templates listed, among which you'll see a Qt Designer file.
Select this entry and enter kenveditdlg.ui as the filename, then
press OK.The file is now generated for you, and the Qt Designer will
show up with a dialogue to select a template for your dialogue.
Choose Dialog and press OK. When you've reached this step, you're
done for the most part--the GUI construction itself can even be
done by someone who never even touched a C++ book. Now, you can see

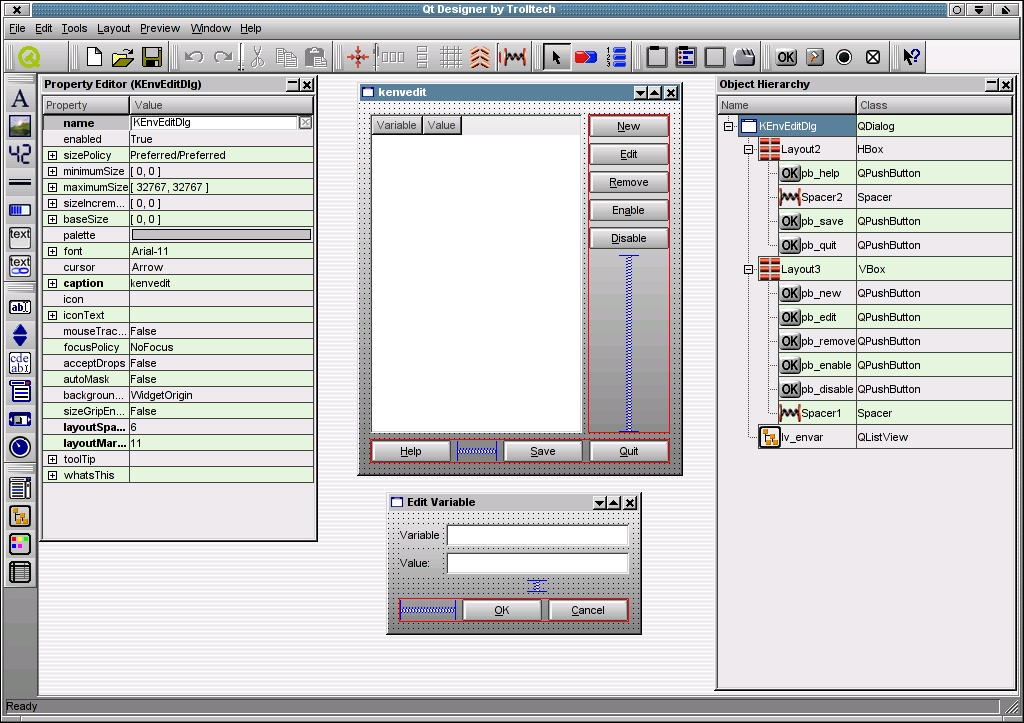

what our first dialogue will look like (Figure 3).
Figure 3. Qt Designer by Trolltech
The upper part of the dialog is the main window of our
application; the lower one is a helper dialog that we also will
have to create so that users can add new entries or change some of
those that are already there. They are both shown here so you can
play with Designer until you have the same look in your dialogue
when following this tutorial.What things should you watch out for especially? First of
all, give the items that you need to access later with code useful
variable names. Also, the dialogue's name item in the box on the
left must be changed to KEnvEditDlg because that's the name of the
class that will be generated out of this user interface by the
template framework. Then, in KDevelop, change the inheritance of
the class KEnvEdit from QWidget (the base class for all user
interfaces in Qt/KDE) to KEnvEditDlg.Now, back in Designer, connect the appropriate buttons with
the connect signals/slots to the main window by dragging a line
from the button to the main window. Both will be marked with a
purple frame so you can see which item you connect to which widget.
In the connections dialogue, you have to connect the signal
clicked() with the appropriate functions (slots); as the dialogue
template only offers two slots, accept and reject, we have to
define our own. Use the name slotQuit(), for example, for the Quit
button. An accelerator key (marked with an underline beneath the
letter that you would use on the label of a button) can be set with
an ampersand placed in front of the letter you are using.So how is this supposed to work? In Designer, you're defining
your user interface graphically and assigning functions to signals
of items that you want to catch and react to. From the Designer
file, the uic (UI compiler) will generate a C++ class that you
should not edit, as it will be overridden when you change the
dialogue again. Therefore, the slots you assigned to signals are
declared virtual. In a class that inherits from your generated
class, you're overriding these slots and filling in your code.
What's left to do is to add another dialogue, KEnvAddDlg, in a ui
file called kenvadddlg.ui, where you can add and edit values, a
process shown in the Designer screenshot.

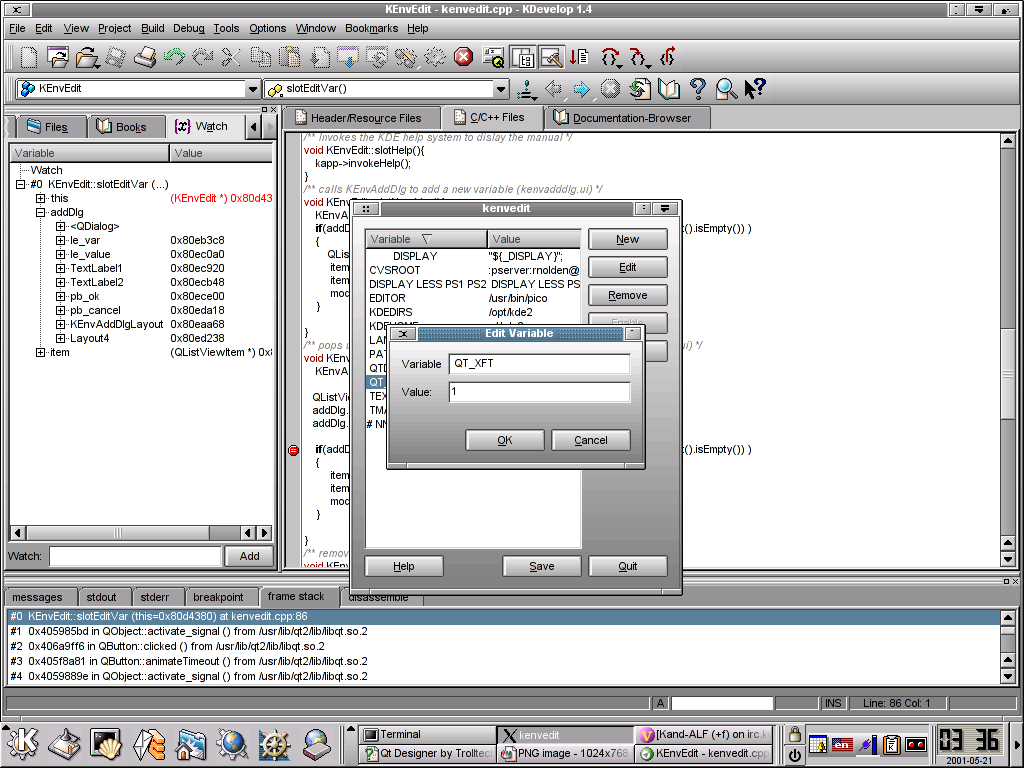

KDevelop in Action

More with KDevelop

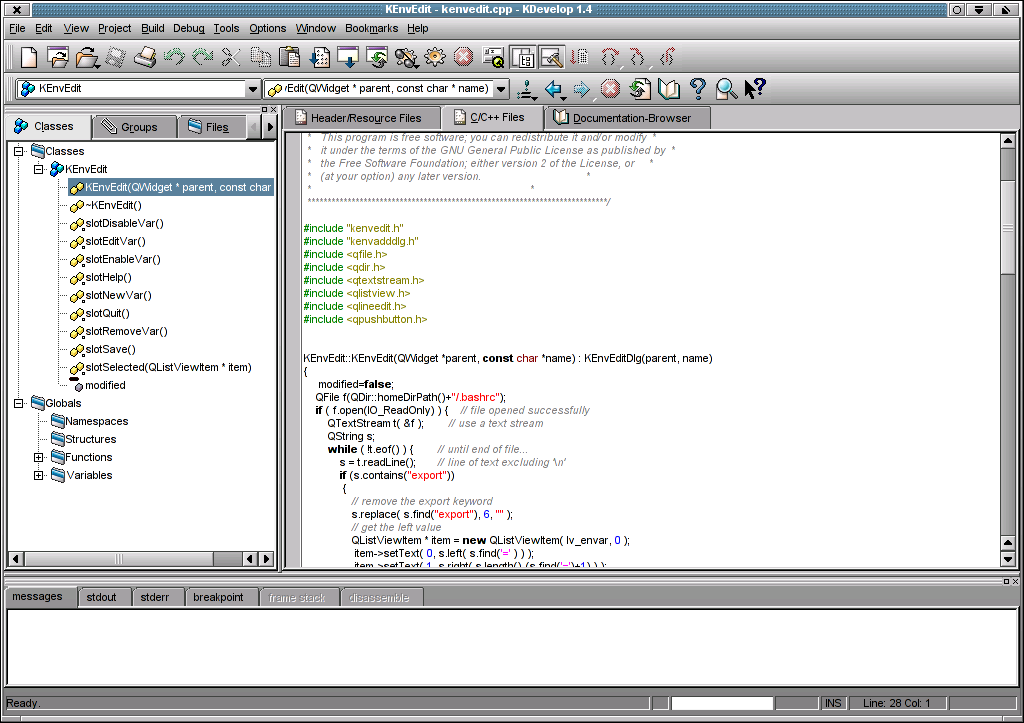

Listing 1. Example Implementation
CodeThe example's implementation code is available in Listing 1.
Some items that need to be finished that are not exactly trivial,
but I'm sure you'll get to it--this is the challenge to take when
everything else is done. Feel free to send me your code at
nolden@kde.org. I'll
probably make a KDE control center module out of it, and it will go
into the KDE distribution--things like this make the project go on
and improve what we have, as well as add more value to it. Maybe
you'll have so much fun programming this KDE application that
you'll show up on the KDE mailing lists and on #kde at our IRC
server irc.kde.org.Ralf Nolden has been
addicted to KDE for years and currently is involved in quality
management and PR for KDE as well as maintaining KDevelop. He is
still a student of electrical engineering at the RWTH Technical
University of Aachen, Germany.

email: nolden@kde.org
