Xforms Marries Perl

How to add a powerful graphical user interface to Perl scripts

As you have seen in various recent issues of Linux Journal, the Xforms library allows you to add a powerful GUI to your C or C++ programs using a simple, intuitive API. The functionality and elegance of Xforms GUI is comparable to Motif's, yet the Xforms libraries are free if used non-commercially. Thanks to Martin Bartlett (martin@nitram.demon.co.uk), the Xforms' GUI can be used from Perl scripts to run complicated graphical applications or to provide a simple “please wait while loading” status bar so the user doesn't get bored waiting (see Figure 1). This article will discuss how to install Xforms4Perl (version 0.5) and how to write a simple address book program with it.

Figure 1. Status Bar

Installing Xforms4Perl

In order to install Xforms4Perl, first you must have installed the following:

  • Perl version 5.003 (or higher), compiled to load libraries dynamically.

  • XForms Library, version 0.86 or 0.88, which can be found at http://bragg.phys.uwm.edu/xforms.

Next you need to obtain the source code for Xforms4Perl, which you can do from either the author's primary site, ftp://ftp.demon.co.uk/pub/perl/perl/, or any of the CPAN mirror sites under the directory /authors/Martin_Bartlett/. You can also get an RPM from ftp://ftp.redhat.com/pub/contrib or CPAN, and skip the next few sections.

Once you have Xforms4Perl downloaded, unpack it into a convenient directory (i.e., /usr/local/src) using tar zxvf Xforms4Perl-0.8.4tgz. This command creates the subdirectory Xforms4Perl-0.8.4.

Xforms allows for the support of OpenGL, and if you want to access it from Xforms4Perl, or if you need to modify some default paths or library locations, you will need to edit the Makefile.PL files located in the subdirectories X11/XEvent, X11/XFontStruct and X11/Xforms.

Then enter the X11 subdirectory and do the following:

  • Type perl Makefile.PL.

  • Type make.

  • Type make install (as root).

  • Copy fd2Perl to a directory that is in your PATH.

Once installation is complete, you can then start writing Perl code which uses Xforms. You might also check out some of the demos that come with PerlXForms, such as the author's XFtool which is similar to the Microsoft Office Toolbar. The rest of this article assumes you have an existing fundamental understanding of Xforms and Perl, although both are so easy to use you can probably pick them up from looking at a few examples.

Constructing the Look of the Application

In order to help explain how to use the Xforms4Perl Library, I will use as an example the development of a simple phone book application from start to finish. The best place to start is with the fdesign application that comes with the Xforms library. It allows you to build the components of your application visually. Rather than trying to figure out if your button should be 33 by 55 pixels or 30 by 50 pixels, you just draw it how you want it, and fdesign deals with all the numbers and details. In order to make things even easier, fdesign is able to output Perl code (thanks to the fd2Perl script mentioned above). We invoke fdesign as fdesign -perl, and create a new form called “list” (see Figure 2).

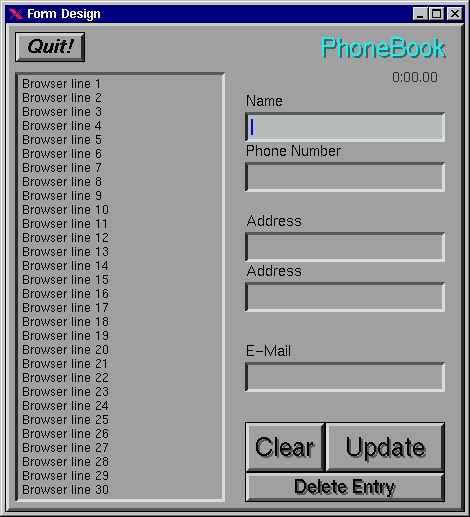

Figure 2. Form Design

First, we add an object called browser where the phone book name entries get indexed. Under the attributes section, we specify that we want this to be a HOLD_BROWSER, which allows a selection from the browser to remain highlighted after selection. Then we give it an obvious name, such as browser, and set up a callback function. This function will be executed when some action takes place in the browser—using callback functions is fairly standard in programming GUIs. We randomly pick the name browser_clicked for the callback function.

We now add five text input fields, all with the same callback function, named data_change. These fields will display the personal information from the phone book entries and are also the locations where the user can make data modifications. These fields are labeled and given the following names in the attributes section:

Label

Name

Name

name_field

Phone Number

phone_field

Address

address1_field

Address

address2_field

E-Mail

email_field

Next, we add four buttons. A pull-down menu could have been used here, but four buttons shouldn't clutter the interface and will be easier to access than a menu. The buttons are labeled “Quit!”, “Clear”, “Update” and “Delete Entry”. The purpose of the Quit button should be obvious. The Clear button is used to clear the text input fields, the Update button is used to save or update whatever is in the text input fields, and the Delete Entry button is used to remove the selected entry from the browser listing. These buttons each have a callback, as listed below.

Label

Callback Function

Quit!

quit

Clear

clear_data

Update

update_data

Delete Entry

delete_entry

Finally, we can add a title such as “PhoneBook” or anything else to improve the appearance, which is quite simple to do using fdesign—you just place it and you're done. I also thought it might be nice to give some of the buttons a shadow effect, which is done from the respective button's attributes menu.
