Open-Source Bug Tracking with Bugzilla

Bug Tracking Systems (BTS) have their origin in software development,
but they can serve as important and useful tools in every team
environment. For this reason the names Issue Tracker or Ticket System
have become more appropriate.

BTS may function as a central point of communication for any team. They
can increase the productivity and accountability of each
employee dramatically by providing a documented work flow and allowing for positive
feedback on good performance. They usually reduce downtime and production
costs while increasing efficiency and, most importantly,
customer satisfaction.

The open-source project Bugzilla, for example, provides an easy to use,
easy to maintain and cost effective solution with a rich feature set that
easily can compete with its proprietary counterparts. Bugzilla's
Web interface allows cross-platform use while the XML and e-mail interfaces
enable automatic error reporting. Not only can the automatic error
reporting be included in the development of a new product, but it also can
be integrated easily into an existing product.

This article provides an overview of how introducing Bugzilla can
help your team work together and communicate more efficiently. Bugzilla
uses the term bug, so I will stay with this notation throughout the
article, but don't forget, it's not only about bugs, You can
use Bugzilla for any task you need to track.

Teamwork
Bug trackers aid the whole product life-cycle. In the case of software
development environments, this usually consists of
software design, implementation and testing. From testing, the work flow
takes it course either back to design or on to implementation for bug fixing. In
the best of all worlds, at some point an error-free product leaves this
cycle and gets shipped to a customer. In all other worlds, the customer
is part of the development cycle and submits bugs.

Everyone in the team needs to effectively keep track of upcoming
issues. Designers and developers need to be notified about new bugs and
reminded of existing ones. Managers need a means to
distribute upcoming bugs to the right developer and quickly acquire the
status of the project. Integrators and testers need to know which
issues already have been resolved and therefore require consideration
in the next build and test cycle. Customers want to be able to rapidly
report bugs and receive an update of their status, while help desk
operators need to be able to respond quickly to such customer demands.

Most companies come to the point where they start to track those issues by
way of e-mail or spreadsheet lists—some even use sticky notes. At some
point, the number of issues outgrows these approaches and the number of
forgotten or unresolved issues demands a better solution. Let's follow one
of those teams on their path to introducing Bugzilla as its in-house BTS.

Preparations: Getting Organized
As with every software product, the introduction of a BTS in an
existing work flow requires initial thought and planning. The goal is
for all participants to accept and use the new system, meaning that its
introduction should have only a positive impact on their daily work.

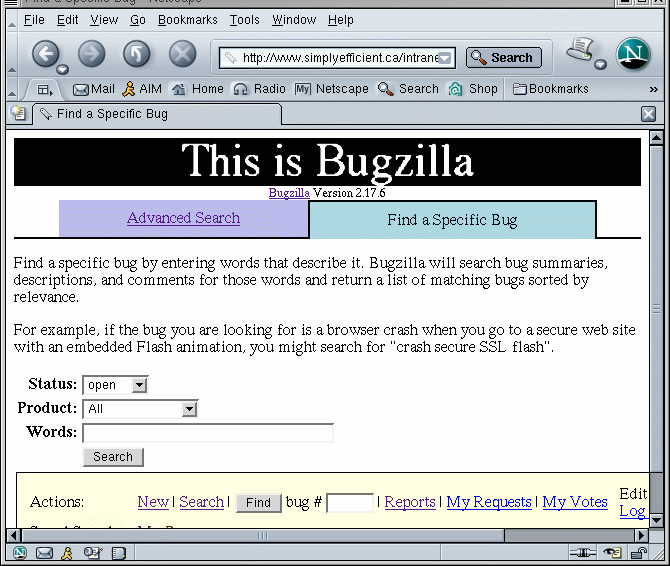

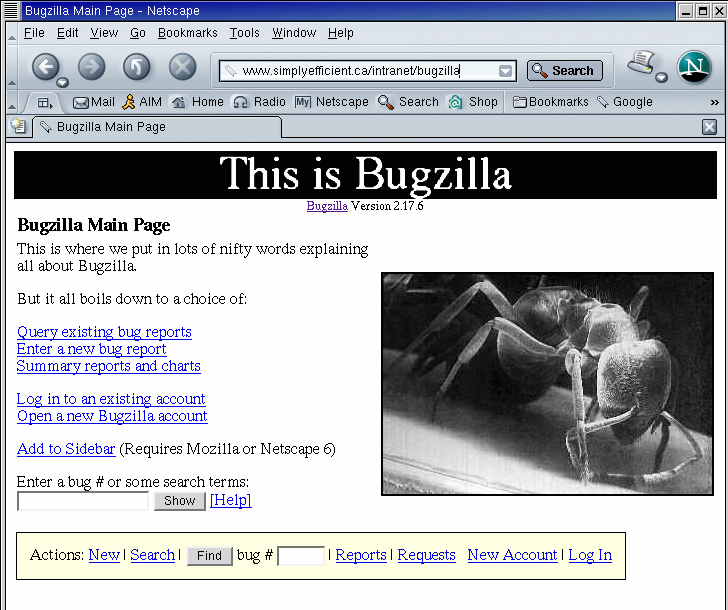

Figure 1. The Bugzilla title page: choose New in the footer to
report a bug quickly.

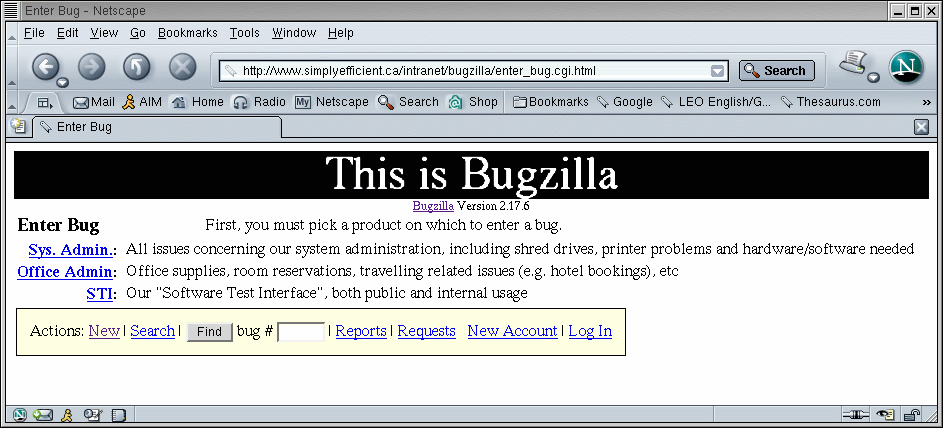

Figure 2. Every bug belongs to a Product, which is subdivided into
Components.

As with most BTS, bugs in Bugzilla concern a component, which belongs
to a product. A bug also may have a version and a milestone
attached. Before introducing the new system, thought must be put into
how its structure fits in to your daily work flow. All possible upcoming
issues in your work flow should have a set place, including problems
with Bugzilla itself. It often makes sense to include even trivial
organizational issues that can have a large impact on development. If
having sufficient blank CDs in your office is critical, you may include
a shortage as a bug in Bugzilla.

Products are the main category and usually represent actual shipping
products or services. You also should have a number of special products
that reflect your internal work groups, like System Administration or
Office Supplies.

Components are sub-sections of a product. Among others, a software product
may have GUI and Database components. Your special product,
system administration, may have the components Intranet Web Site,
Shared Drive and Printers, to mention a few. Each component has at
least one designated user that receives the error reports. Naturally
you want to ensure that the workload is distributed evenly.

Versions refer to the version of your product where the bug occurred,
while milestones represent target times for a bug to be fixed by. This
does not necessarily need to be a date; it can be something like “When
boss returns from holiday”.

Keep It Simple
Simplicity is the key to an easy-to-use system. Bugzilla comes
set up with extensive lists of operating systems, priorities a bug
can have and states a bug can be in. It is important for an efficient
work flow that you adapt these to your specific needs. This is true especially
for priorities, which Bugzilla calls Severities. I know no
environment that requires as many priority levels as come with Bugzilla
originally. Usually no more than three severities are needed: high
(or showstopper) for major bugs that cause production stops or block
other people from completing their work, medium for most normal
bugs
and low for minor issues such as typos. Any more than these cause confusion.

Similar rules apply to the state that a bug can be in. The
states should reflect your normal work flow, not the
other way around. A standard set of states may include New, Accepted,
In Progress/Open, Resolved, Not a Bug and Tested/Completed.

These are all simple tasks, but thinking about them initially and
communicating them with your teams in the early stages of rollout
prevents confusion and guarantees a smooth introduction of the new
tool.

The Fun Stuff: Installation
To install Bugzilla,
get the latest version from bugzilla.org. Although version
2.16.3 is declared as the latest stable release, I have
found no problems with the many 2.17.4 installations we have
running. This newer release also has many interesting extra
features. You also need
Perl 5.6 or higher,
a running MySQL Database, minimum version 3.23.41. With
a little manual tweaking, databases such as Oracle and Postgres also
work well. Finally, you need
a running Web server—Apache, of course, is recommended.

The installation process is pretty straightforward. After installing a
number of Perl libraries and setting up a database user dedicated to
Bugzilla, the installation basically consists of copying the contents
of the tarball to your Web space and running the checksetup.pl script
located in the main Bugzilla directory. This magic script sets up the
vitals, including the administrative user and access permissions. It
also creates a file named localconfig. This file's contents are
self-explanatory and include, for example, the database connection
settings. Be sure to install the Perl packages that are declared

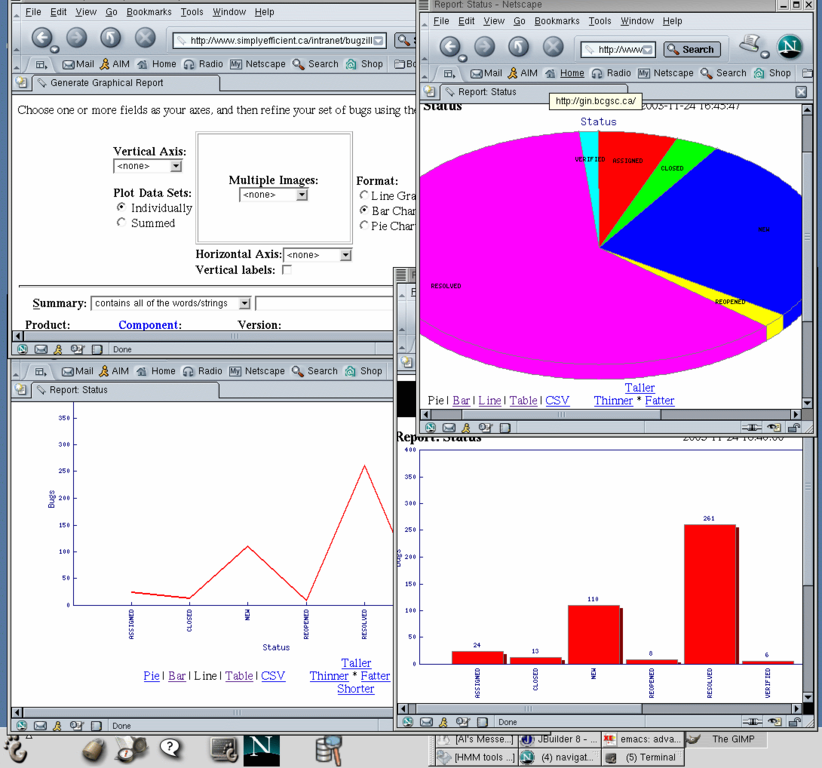

optional and a package called dot (part of GraphViz). These extra
packages allow for enhanced graph and reporting capabilities.

While you
are at it, include the collectstats.pl script, which
allows for the nifty bug history graphs in your crontab. After
running checksetup.pl again, you are able to access a fully functional
Bugzilla in your Web browser. In the footer of the start page you should
find a link entitled Edit parameters. Run through the settings on this
page and set them as appropriate.

The most important settings include:

• maintainer: the e-mail address of the person
  responsible for maintaining this Bugzilla installation. The address need
  not be that of a valid Bugzilla account.
• urlbase: defines the fully qualified domain name and
  Web server path to your Bugzilla installation.
• whinedays: set to the number of days you want to allow a bug
  to remain in either the NEW or REOPENED state before notifying the
  responsible party that he or she has untouched new bugs. If you do not
  plan on using this feature, simply do not set up the whining cronjob
  described in the installation instructions above, or set this value to
  0.
• commenton*: each of these fields allow you to dictate which changes
  can pass without comment and which must be commented upon by the
  changer. Usually it makes sense to allow users to add themselves
  to the CC list, accept bugs and change the Status Whiteboard without
  adding comments about the reasons for the change, yet require that
  most other changes come with an explanation.

Adding Users, Products and Components
Users can create their own user accounts by clicking the New Account
link at the bottom of each page, assuming they aren't logged in
already. However, should you wish to create user accounts ahead of time,
here is how you do it.
After logging in, click the Users link at the footer of the query page
and then click Add a new user. Fill out the form
and click on Submit. Make sure to restrict your
user's rights to reasonable access levels.

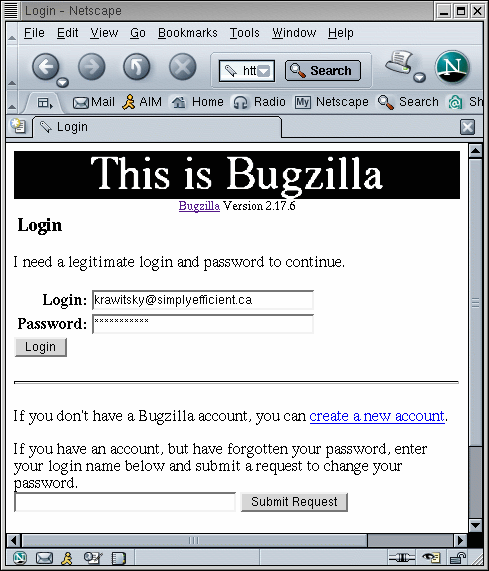

Figure 3. For instant access, new users can sign up easily and get their
password by e-mail.

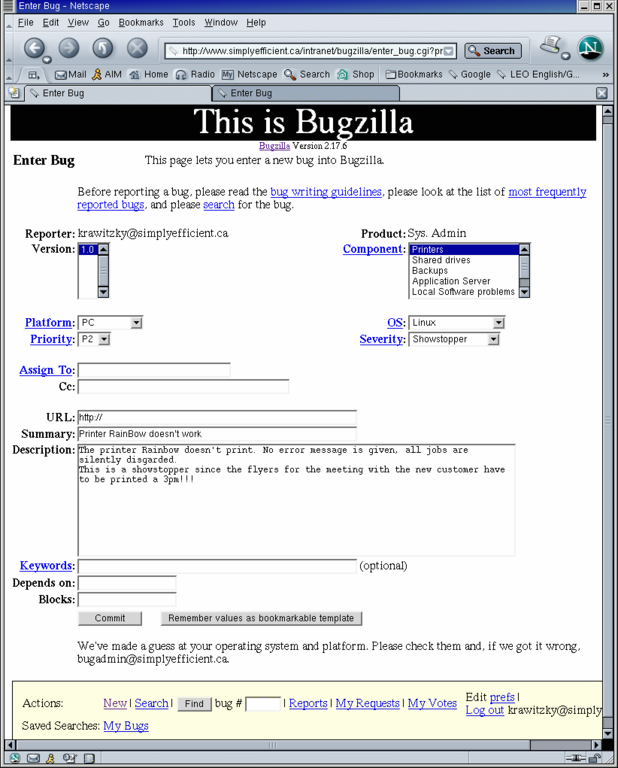

Figure 4. There should be clear guidelines in your teams as to how to
report a bug properly. This includes giving as much information as possible to
track down problems efficiently.

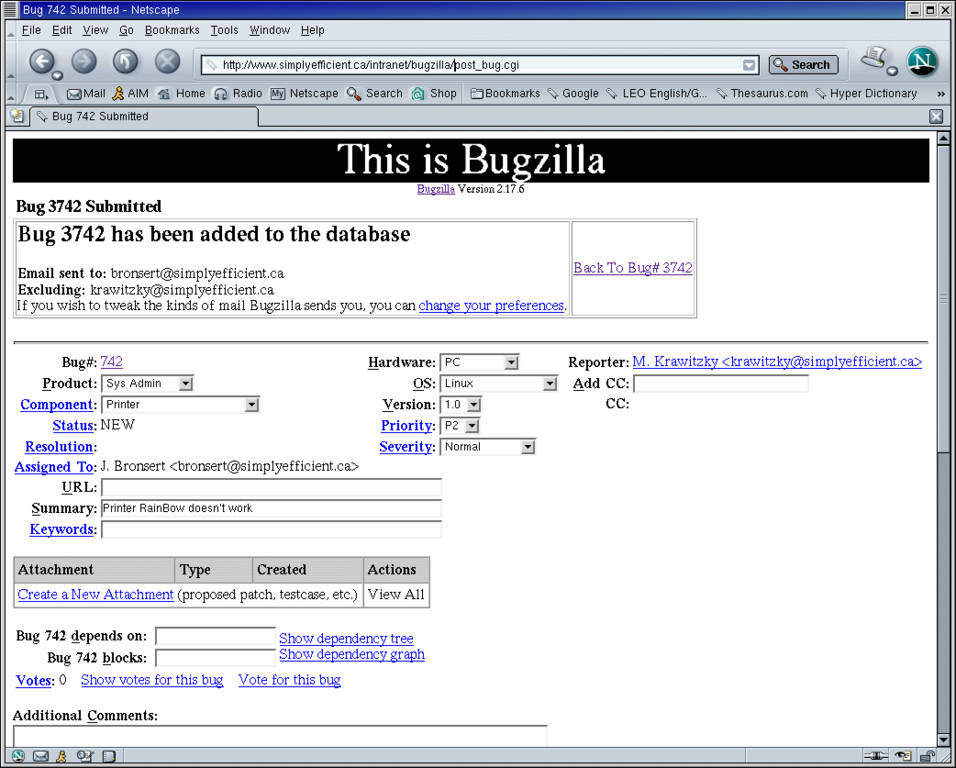

Figure 5. Each person involved with the issue automatically receives an
e-mail notification on new bugs.

Figure 6. Processing of the issue is reflected by changes in its status in
combination with meaningful comments.

In addition to adding users for each member of the team, you also
may want to create an anonymous user. This can be useful for allowing
external persons, such as customers using your Web site, to submit a bug
without the added overhead of creating a new user account. Now is also
a good time to set up your products and related components, as discussed
earlier. Don't forget to insert meaningful descriptions and assign
the right person to each component.

The last step is to set up the correct lists of used operating systems,
bug states and priorities for the system. All of these settings can be
altered and improved upon later without problems or downtime, but try
to prepare as much as possible now to avoid confusion among the users
and improve the smooth integration of Bugzilla in your work flow.

Pest Control: Dealing with Bugs
At this point Bugzilla is ready to go and ready to provide you with
real help. Once the system is set up, dealing with issues is as easy and
straightforward as filling out a form and clicking the submit button. Bugs
are submitted and the system reports to the responsible people—reminders included in case it takes too long. The person responsible
either accepts responsibility for the issue by changing its
state or forwards it to someone else. Either way, at some point the
issue is processed and hopefully resolved, which is reflected by
various state changes.

Each state change results in a notification to each person dealing with
the issue. A unique bug_id and a sophisticated query page allow everyone

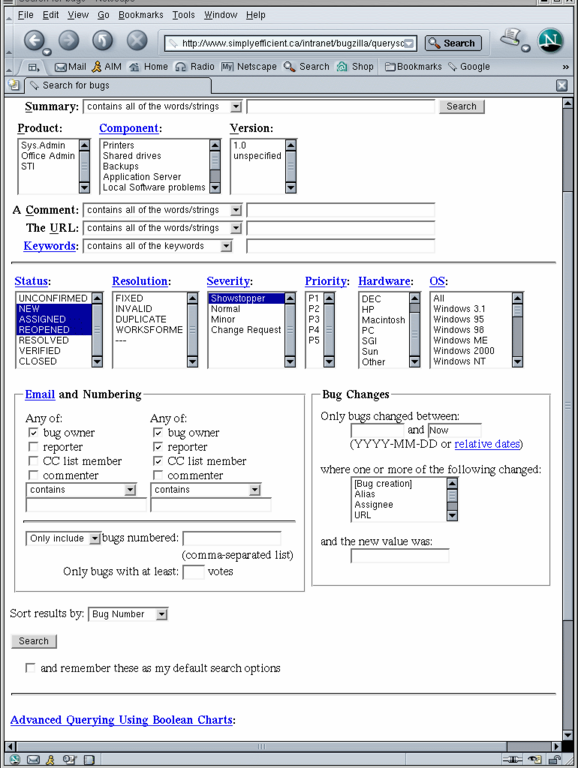

to stay up-to-date on bugs of interest. As can be expected, the query

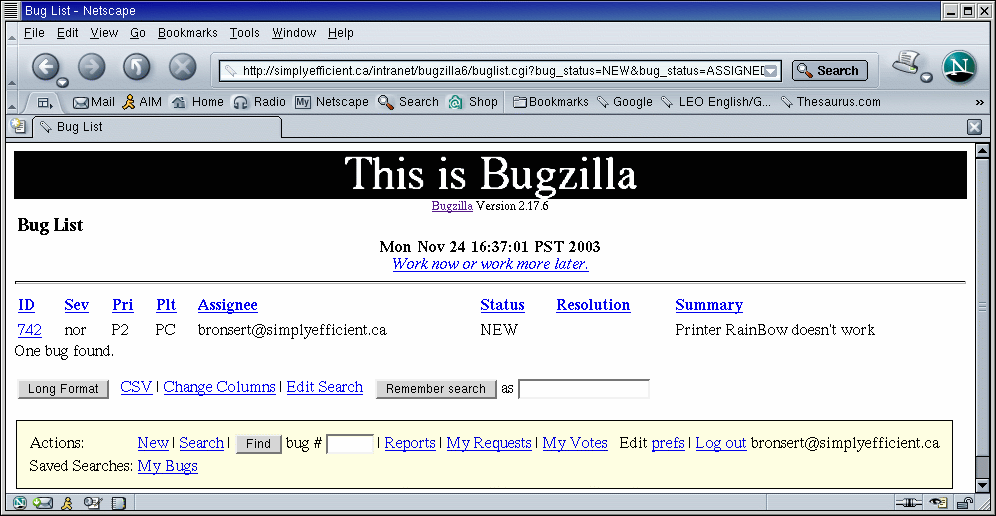

page allows for quick execution of standard queries, such as Show me all
of my open bugs. This outstanding query page also facilitates extremely
complex queries, something that cannot be said about all of Bugzilla's
commercial counterparts. Only a few mouse-clicks are required for such queries
as “Show me all bugs in our e-commerce Web site, in the shopping
cart component, submitted by Alice between December 1 and December 24
with an attachment containing the phrase 'resolve after Christmas
rush'”.

Figure 7. Simple queries, such as “all my open bugs”, are available by way of
links in the footer.

Figure 8. Quickly locating a single bug using full-text search.

Figure 9. Complex queries for whole sets of bugs can be stored for future
re-use.

It's a lot of fun working with a system like Bugzilla. To increase its
use even further, it is necessary that each member of your team be
conscious about the fact that a BTS reflects the state of health of
your products. Sometimes when you are swamped it's tempting
to close a minor bug by saying “works for me”. This always
backfires at
the least desirable moment, so it is important to create an environment
where bugs are reported with a maximum set of information, allowing
the developer to effectively pin it down. In the best of all worlds,
this means a description on how to reproduce the bug. Every major state
change also must be documented with a meaningful comment. “Fixed
bug”
is not a meaningful comment. A short description of what exactly
caused the bug and how it was fixed (where appropriate) helps not
only the integration team but also the team leads to find ways to
prevent frequently appearing bugs. Make use of the fantastic Bugzilla
features like inter-bug dependencies. These show that one bug can
be fixed only if some other bug is fixed first, which allows for easy
identification of bottlenecks. Remember, it's all about teamwork.

Project Management
An important function of a BTS is to reflect the current development
state of a product as well as its changes over time. Not only does this
give valuable information about your team's workload, but it also helps
in identifying endangered milestones or deadlines. Information about
the time it took to fix certain issues in the past offers valuable
information on how much time you can expect similar projects to take
in the future. Last but not least, a high number of upcoming issues in
a certain area highlights areas of your work flow that could use some
attention for the purpose of improvement.

Not only does Bugzilla supply you with a sophisticated query page, but
both table-based (one, two and three dimensional) and graphical
representations (line, bar and pie charts) of the current project
state are available too. Reports can be generated in a extremely flexible way by assigning
values to the diagram or table axes, (for example, product for the horizontal
and State for the vertical axis) and setting filter options for the
bugs, dictating which should be considered in the diagram. Reports can
be exported to a text file, thus providing an interface to spreadsheet
or word-processing programs.

The development of your product can be monitored by bug status or
by resolution of bugs over time. The data for this type of diagram is
accumulated automatically in the background while Bugzilla is running,
so time-consuming queries are not required.

In addition to the built-in reporting tools, custom-made SQL queries on
the Bugzilla database allow for easy access to the bug data in creating
custom reporting. By way of such queries, third-party reporting software
likewise can make use of the Bugzilla database.

Figure 10. In addition to textual reports, Bugzilla comes with advanced
charting functionality.

As you can see, Bug Tracking Systems like Bugzilla can help to organize
and structure your team's entire work flow. Their use definitely is not
limited to software development environments. If you want to try Bugzilla,
a demo installation can be accessed at landfill.bugzilla.org.

Resources
Bugzilla: www.bugzilla.org/download.html

The Bugzilla Test Server: landfill.bugzilla.org

Juanita Lohmeyer and Maik Hassel usually are busy with their
Vancouver-based company, Simply Efficient, testing software or providing various
IT services for their customers.
Thanks to the massive use of high quality open-source products, they have
some free time left to breathe either thin air on top of mountains or
compressed air under the ocean around Vancouver.
They can be reached at info@simplyefficient.ca.
