XMLTP/L, XMLTP Light
XMLTP/L, or XMLTP Light, is a lightweight
RPC protocol that uses XML to encode the stream of data. XMLTP/L
has been designed to do fast RPC calls over an intranet, within an
enterprise. More specifically, the first purpose of XMLTP/L is to
forward transactions (RPCs) to a database server. But, it also can
be used to do method calls to any server that follows the common
RPC technique introduced by XML-RPC and older client/server
protocols.The origins of XMLTP/L come from the inherent limitations
associated with proprietary client/server protocols: basically,
they are proprietary. XMLTP/L is distributed as source code and is
licensed under the GNU Library General Public License (GNU
LGPL).Because of the languages used in the current implementation
of XMLTP/L, developers who use C, Python and Java should find this
article more interesting. But, we expect ports will be made to
other scripting and web application languages, such as PHP and
Ruby.The name XMLTP Light evokes the design goals and purposes of
this protocol:
- transport TP Light (see Note 1) remote procedure
calls (RPC); - use an XML syntax to allow compatibility with
various tools, extant or future; - have good performance, with modest requirements
(therefore, real practical scalability using simple hardware
configurations); and - have a lightweight and robust
implementation.
To achieve its goal of being fast and lightweight, XMLTP/L
does not try to do everything and acknowledges the following
constraints and limitations as non-goals:
- it uses a subset of XML (a full-fledge XML parser
can parse XMLTP/L, but not the reverse); - it is not a universal transport for all
datatypes; - it is not the most standardized or the most
buzzwords-compliant technology to appear now, yesterday or
tomorrow; and - it is not as easy to install as XML-RPC (which is
less than 20KB of code in the Python 2.x standard
installation).
XMLTP/L is much more boring than other XML protocols, such as
SOAP or XML-RPC, or any newer web services protocols that will
appear real-soon-now. But, if it fills someone's need for a
non-proprietary, robust and flexible RPC protocol on their
intranet, then that would be great.XMLTP/L should be appealing to people who use stored
procedure calls and want more flexibility (like integrating
multiple DBMS or building a custom non-SQL dataserver). It works
for people who need some level of XML compliance without suffering
response time greater than 300 or 500 ms, as is the norm for all
the implementations of RPC-over-XML that I have tried so far. I
have not tried all of them but enough to convince me to write a
custom XML subset parser in Bison and C.

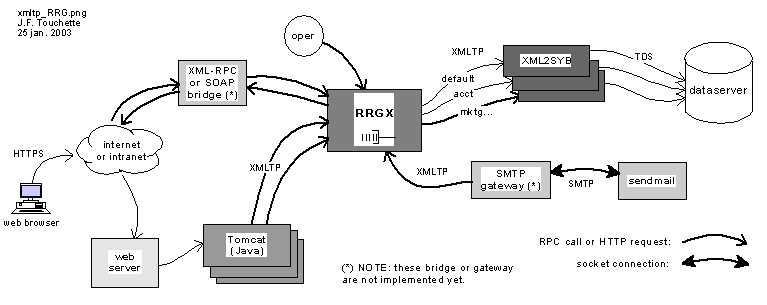

Figure 1. XMLTP/L Server Interconnections
Figure 1 shows a schema of XMLTP/L server inteconnection.
Only one dataserver is shown, but it is possible to put two or many
behind the RRGX, a gateway that does RPC Routing (more about RRGX
below). Also in Figure 1, you can see a small box called XML-RPC or
SOAP bridge. This piece does not exist yet. But, it would be rather
easy to create such a bridge, as the initial specs for XMLTP/L are
similar to those for XML-RPC.Technical SpecificationsThe current implementation of XMLTP/L uses plain TCP/IP
socket for transport, and the connections are persistent. In other
words, once a socket connection is established, it is used for many
RPC calls. This situation is different from XML-RPC, where a new
HTTP connection (a new TCP/IP connection) typically is made for
each RPC call. This is one of the reasons why XMLTP/L is faster
than XML-RPC.Furthermore, the RRGX gateway and the Java classes (RPC call)
use connection pools. This technique is another boost for
performance when many threads of an application server make many
RPC calls.The lightness of the implementation is a third factor for
good speed. XMLTP/L is a simple XML-based protocol, and it supports
only four datatypes in the RPC parameters and in the tabular result
set(s), which can be returned by the stored procedures. These
datatypes are:
- integer: 32 bits, most likely (Python allows for
larger *int*, but XML2SYB uses ANSI "C" 32 bits *int* on GNU/Linux
on x386) - float: double precision, most likely
- timestamp: "YYYY-MM-DD HH:MM:SS.mmm"
- string: max of 255 characters.
For any of these datatypes, a value can be flagged as *Null*.
In this case, the data associated with that value should be sent
empty by the server, and it should be ignored by the client.If we look at all the details, a XMLTP/L response contains a
return status (always), one or many result set(s) (optional), a
messages(s) (optional) and an output parameter(s)
(optional).The XML syntax of both the RPC call and the response in
XMLTP/L is lighter than the equivalent in XML-RPC. Here is an
exampe of a RPC call in XMLTP/L:
<?xml version="1.0" encoding="ISO-8859-1" ?> <procCall<proc>RPC_PROC_1</proc> <param> <name>@out_param</name <int>-9999</int> <attr>114</attr> </param> <param> <name>@param_1</name> <str>adenosine</str> <attr>0012</attr> </param> </procCall>
Here's the same RPC call, using the XML-RPC syntax:
<?xml version='1.0'?> <methodCall><methodName>RPC_PROC_1</methodName> <params> <param> <value>array><data> <value><string>@out_param</string></value> <value><int>-9999</int></value> <value><string>114</string></value> </data></array></value> </param> <param> <value><array><data> <value><string>@param_1</string></value> <value><string>adenosine</string></value> <value><string>0012</string></value> </data></array></value> </param> </params> </methodCall>
The difference in the byte count is even more dramatic when
the RPC call has more parameters and also in a response with a
large number of rows.A main design goal of XMLTP/L was to pump a high volume of
transactions in and out of a relational database. We wanted some
level of vendor independance, specifically so users would suffer
less from the vendors' frequent upgrades to their native
client-server APIs. Also, we wanted to be able to mix datasources
and perform RPC routing in a way that would be invisible to the web
application server or to other XMLTP/L clients connected to the
RRGX.XMLTP/L acts like a universal database RPC protocol. The
whole intranet can use XMLTP/L for RPC calls, and vendors'
proprietary protocols can be isolated on a server near the database
itself. The RRGX (RPC Router Gateway for XMLTP/L) can integrate
multiple database servers together as if if it was a single server.
Be aware that XMLTP/L does not automate synchronisation of
transactions on multiple dataservers; each RPC is independent of
all other calls.The RRGX does not use any proprietary client/server APIs.
This RRGX allows calling procedures in multiple database servers as
it routes the RPCs to the various converter programs, according to
the names of the procedures. Those routing rules are defined in the
configuration file of the RRGX.The RRGX needs one converter per database protocol. Such
converter programs are external programs built from the vendor's
API libraries and the XMLTP/L modules. Currently, XML2SYB (XML to
Sybase) is already implemented.It also is possible to code stored procedures in Python in a
server similar to the RRGX, which is derived from the generic
gxserver.py module. Many other small features are in the RRGX that
make it useful in a real production environment:
- log of events and messages (error, warning, trace
& debug) - dynamically adjustable trace level
- built-in operator commands, such as ps, who, stats
and so on - gates that can be closed while maintenance is done
on the database(s) behind the gateway:
- RPC gate (global)
- connection pools gates
- connection gate (global)
- application specific gates (one gate for a list of
RPC names).
When a gate is closed, a user-defined message can be sent back to
the clients.
active re-forwarding)
Limitations, Trade-offs and AdvantagesThe choice of only four simple datatypes shows that XMLTP/L
does not attemp to solve many of the needs of typical multimedia
applications. It probably would be quite easy to support a BLOB
(binary large object) datatype, but this is not a priority at this
moment.Another limitation in this first implementation is the
currently supported character set is ISO-8859-1 (Latin European
languages). But, given the fact that this is a simple protocol (and
the fact that the source code is available under the GNU LGPL
license), we expect other developers to adapt it to their own
cultural needs.The XML syntax used in our project is much more compact than
the one used by XML-RPC as of August 2001, when we started
designing and building XMLTP/L. A typical RPC call stream or result
stream is about half the size when it is encoded with XMLTP/L,
because the tags in XMLTP/L are smaller and fewer.Technical Details about the Current
ImplementationWe used four languages--GNU Bison, ANSI C, Python and
Java--to do the current implementation. At this time, XMLTP/L can
be used by programs written in three languages: Python, C and
Java.The main building blocks of the implementation are:
- a grammar suitable for GNU Bison (in other words, a
Yacc .y source file). This grammar is done in a way that allows a
multithread parser. - a C/Python module that does parsing in a
multithreaded way. That xmltp_gx.so module allows users to write
both client and server programs in Python. Furthermore, it
currently is used to build a gateway server, gxserver.py, that
routes RPC calls according to their names. The gateway gxserver.py
(or RRGX) has many other features, such as operator commands and
RPC gates, that are not fully described here. - a C program, XML2SYB, that converts back and forth
between XMLTP/L RPC calls to native Sybase RPC calls (TDS
protocol). XML2SYB acts as a XMLTP/L server. - a Java JDBC driver (client side of XMLTP/L) that is
suitable for use with Tomcat web applications or other Java
programs.
ResourcesXMLT/P
SiteEssential Client/Server Survival Guide,
Robert Orfali, Dan Harkey & Jeri Edwards. New York, John Wiley
& Sons, Inc., 1994."Scale Up with TP Monitors", BYTE, April
1995, pp. 123-128.Notes*TP Light*: TP Light is doing light OLTP (on-line transaction
processing) by using RPCs to call procedures stored in a SQL
database. This could be a Sybase, Oracle, IBM DB2 or any other
DBMS.Jean-Francois Touchette has
been developing software for 20 years. Since 1985, he has written
several gateways and servers with various protocols. He has been
using C and UNIX since that time. When Python is suitable, he
prefers it.
