Network Simulator 2: a Simulation Tool for Linux

The ARIES (Advanced Research on Internet
E-Servers) Project started in 2000 as part of the Open Systems Lab
research activities at the Ericsson Corporate Unit of Research.
Initially, the project aimed to find and prototype the necessary
technology to prove the feasibility of an internet server that had
the guaranteed availability, response time and scalability using
Linux and open-source software. The project was successful, and it
continued in 2001 to focus on enhancing the clustering capabilities
of Linux to be the operating system of choice for the Mobile
Internet servers. Many enhancements were added in the areas of load
balancing, traffic distribution and security, in addition to IPv6
support.One interesting question that came up was what is the impact
of supporting IPv6 on other protocols used by different
applications on our Linux clusters? To answer this question, we
started a study investigating the effects of IPv6 support on other
protocols, such as SCTP. Part of the study is to test applications
in SCTP over IPv6. However, we did not have the time and resources
to set up a lab with multiple nodes and applications that use SCTP
over IPv6. Instead, we chose the next best solution, network
simulation.There is a growing recognition within different internet
communities of the importance of simulation tools that help design
and test new internet protocols. New services and protocols present
challenges for testing. For instance, quality of service and
multicast delivery require large and complex environments. Protocol
designers recognize the advantages of simulation when computing
resources are not available or are too expensive to duplicate a
real lab setup. With simulation, you can do large-scale tests that
are controlled and reproducible. This was exactly what we needed to
build our case scenarios; the search started primarily for an
open-source tool because most of our work targets the deployment of
open-source software based on Linux.Our target application is a real-time network simulation tool
that we can use to define the different scenarios. A very
interesting open-source tool we came across was Network Simulator 2
(NS2), which was developed by the Information Sciences Institute at
the University of Southern California.In this article, we summarize how to install and configure
NS2 and look at two different simulation scenarios. The first
scenario involves monitoring SCTP traffic between two nodes, and
the second scenario looks at the behavior of web traffic and web
applications over TCP over a six-node network.The Tool: Network Simulator 2NS2 is an open-source simulation tool that runs on Linux. It
is a discreet event simulator targeted at networking research and
provides substantial support for simulation of routing, multicast
protocols and IP protocols, such as UDP, TCP, RTP and SRM over
wired and wireless (local and satellite) networks. It has many
advantages that make it a useful tool, such as support for multiple
protocols and the capability of graphically detailing network
traffic. Additionally, NS2 supports several algorithms in routing
and queuing. LAN routing and broadcasts are part of routing
algorithms. Queuing algorithms include fair queuing, deficit
round-robin and FIFO.NS2 started as a variant of the REAL network simulator in
1989 (see Resources). REAL is a network simulator originally
intended for studying the dynamic behavior of flow and congestion
control schemes in packet-switched data networks.Currently NS2 development by VINT group is supported through
Defense Advanced Research Projects Agency (DARPA) with SAMAN and
through NSF with CONSER, both in collaboration with other
researchers including ACIRI (see Resources). NS2 is available on
several platforms such as FreeBSD, Linux, SunOS and Solaris. NS2
also builds and runs under Windows.Simple scenarios should run on any reasonable machine;
however, very large scenarios benefit from large amounts of memory.
Additionally, NS2 requires the following packages to run: Tcl
release 8.3.2, Tk release 8.3.2, OTcl release 1.0a7 and TclCL
release 1.0b11.Installation and ConfigurationThe process of installing NS2 is straightforward yet lengthy.
At the time of writing, the most recent version was 2.1b8. We are
interested in the "all-in-one" package because it includes the
source code that we want to patch in SCTP support.You can download the all-in-one package from the NS2 home
page (see Resources) into /usr/src and extract it as
follows:

cd /usr/src
tar xzvf ns-allinone-2.1b8.tar.gz
cd ns-allinone-2.1b8

Because we want to examine a case scenario involving SCTP, we
need to apply the SCTP patch to NS2 from the University of
Delaware. The patch is available for the NS2 all-in-one 2.1b8
version and can be downloaded from the Protocol Engineering Lab
home page (see Resources). With the Linux
patch utility, you can update the
NS2 source code to include support for SCTP by applying the
patch:patch -p0 <
ns-allinone-2.1b8.sctp-rel2.2_patch_origIn the same directory, there is a script named install that
will configure, compile and install the required and optional NS2
components. There is no interaction with the user while installing;
the script is completely automated. You must execute the script as
superuser so that installation of binaries will be
completed:./installWhen the installation process is complete, the following
message will appear on your shell

Please put
$CUR_PATH/bin:$CUR_PATH/tcl$TCLVER/unix:$CUR_PATH/
tk$TKVER/unix into your PATH environment; so that
you'll be able to run itm/tclsh/wish/xgraph.
IMPORTANT NOTICES: [...]

Carefully follow all instructions given in the notices. The
above-mentioned variables can be updated either by editing
/etc/profile or changing environment variables directly. In case
you updated /etc/profile, you need to source your new environment
for the changes to take effect (i.e., source
/etc/profile).The NS2 validation suite will verify that all protocols are
functional. This will fail if the install process was not
completed; however, running validation is optional, and it consumes
twice as much time as the compilation and installation
process.To run the validation suite:

cd ./ns-2.1b8
./validate

Using NS2 to Monitor SCTP TrafficSCTP is a transmission protocol that was introduced by the
IETF workgroup SIGTRAN in October 2000 (RFC 2960) to allow SS7
traffic over IP. However, since then it has adopted many more uses
because of its versatility as it also supports multihoming, network
congestion control, error-free sequenced delivery and many other
options.After applying the SCTP patch to NS2 package, a README file
is created: /usr/src/ns-allinone-2.1b8/ns-2.1b8/sctp.README. At the
end of the sctp.README file, there is an example script for an SCTP
interaction. In the simulation generated by this Tcl script, you
will observe SCTP's four-way handshake as described in RFC 2960, as
well as congestion control. This scenario examines FTP traffic over
SCTP between two nodes: node 0 is FTP client and node 1 is FTP
server.The original script is hard coded for version 2.1b7a. You
need to update few lines to reflect your own setup. Listing 1 has
been updated assuming that NS2 version 2.1b8 was installed.Listing 1. SCTP Simulation
ScriptThe changes that were applied to the original script are
basically setting the paths depending on the specific environment.
Once you update the paths of all used tools, you are ready to start
NS2 for a network simulation of SCTP. To start the simulation,
follow these steps:

cd /usr/src/ns-allinone-2.1b8
ns ./sctp.tcl

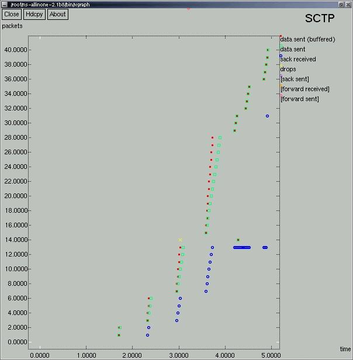

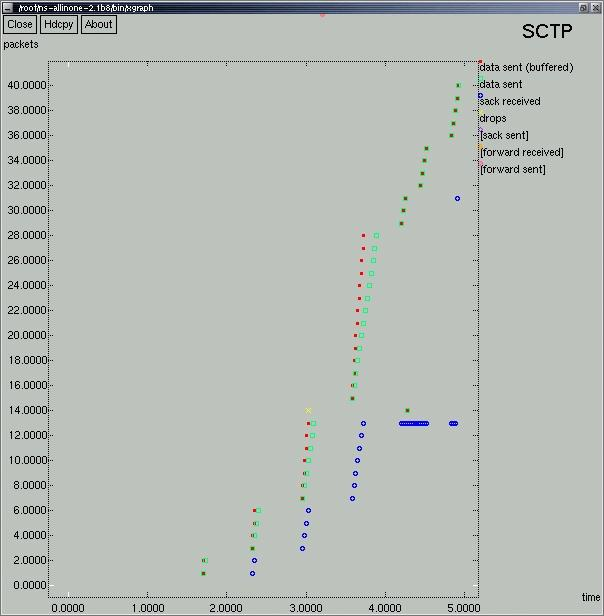

Figure 1. SCTP Data Profile

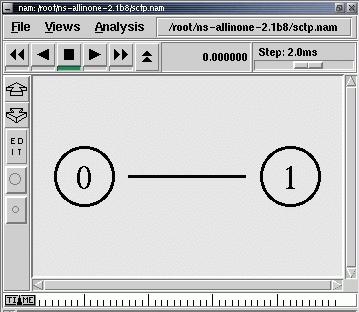

Figure 2. Simulation Window
On execution, three windows will appear. The first window is
represented by Figure 1 showing a graph with packet traffic. The
second window shows the simulation window as seen in Figure 2. The
third window is the control window of the network animator
(NAM).It is interesting to see the graph generated by NS2 (Figure
1). The yellow x represents a dropped packet and horizontally to
the right is the retransmission. This dropped packet occurred
because of an error loss model that was introduced into the script
that simply drops the specified packets between nodes given. SCTP
manages retransmission similarly to TCP, supporting fast
retransmit.

set err [new ErrorModel/List]
$err droplist {15}
$ns lossmodel $err $n0 $n1

In the simulation window (Figure 2), right click on the link
between both nodes and select graph --> graph bandwidth, and
then click on Link 0-->1; you will obtain a bar graph
representing bandwidth going from node 0 to node 1. You can repeat
this process for reverse traffic bandwidth to monitor traffic going
from node 1 to node 0. Now, you should see traffic bandwidth graphs
below node display (Figure 3).

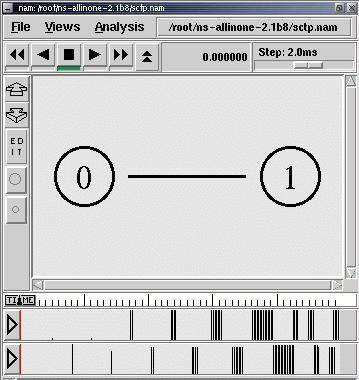

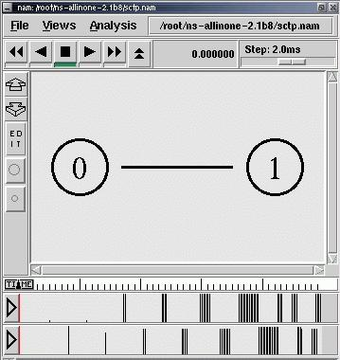

Figure 3. Traffic Bandwidth Utility Graphs
Before we start the scenario, we will take a brief look at
some important lines in the script and explain what they do:

[...]                     // After initializing trace
                          // files and simulation windows
set n0 [$ns node]         // two nodes are created
set n1 [$ns node]         // (n0 and n1)
$ns duplex-link $n0 $n1 .5Mb 300ms DropTail
                          // then they are linked
                          // together
$ns duplex-link-op $n0 $n1 orient right
[...]
set sctp0 [new Agent/SCTP]
$ns attach-agent $n0 $sctp0
[...]
set sctp1 [new Agent/SCTP]
$ns attach-agent $n1 $sctp1

Then we define the protocol (SCTP) that will be used for
destination and return traffic. An agent, defining what protocol to
use, is similar to a carrier for packets. Each agent must be
attached to a specific node:

$ns connect $sctp0 $sctp1      // connect both agents
                               // together to set up
                               // a communications
                               // channel, or a stream
[...]
set ftp0 [new Application/FTP] // define the type of
                               // application that
                               // will use the
                               // stream, FTP
$ftp0 attach-agent $sctp0

To start real-time simulation, press the play forward button.
The first event to notice is the four packets that initiate the FTP
connection. This corresponds to the stream initiation behavior
specified in RFC 2960. The other event to observe is congestion
control. SCTP will send few packets at a time and steadily increase
until it reaches a maximum throughput but will not flood the
network. Although we do not alter our network's bandwidth, the FTP
connection between nodes 0 and 1 shows some basic congestion
control. The beginning and end of the FTP connection are defined on
these lines:

$ns at 0.5 "$ftp0 start"
$ns at 4.5 "$ftp0 stop"

Notice how the packets are being sent in an increasing
fashion, or visually, in longer formats. Actually, the packets are
always the same length; however, the number of packets received by
the server is increased as can be seen by the number of SACKS
received by client (Figure 4). SACKS are sent to acknowledge each
packet received to ensure packet validation and reliability.

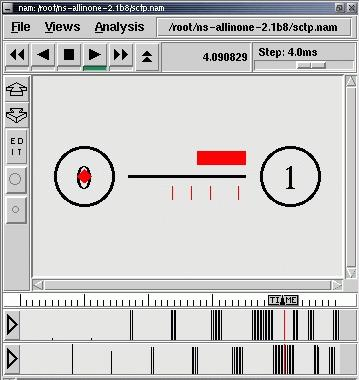

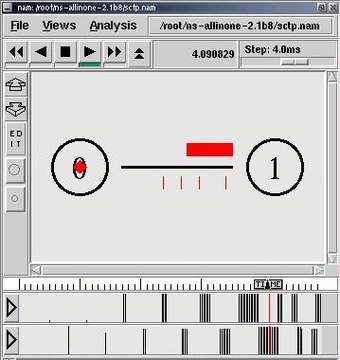

Figure 4. SACKS for Every SCTP Packet Sent
The University of Delaware did not implement multihoming in
their SCTP patch to NS2. This means that SCTP behaves similarly to
TCP when it comes to streams. Otherwise, packets could be seen
traveling both along the primary path and along another routing
path to the server's second, third or other IP address. A similar
behavior is dynamic rerouting, which is a secondary function of
SCTP's primary path monitoring.Using NS2 to Monitor Web Traffic over

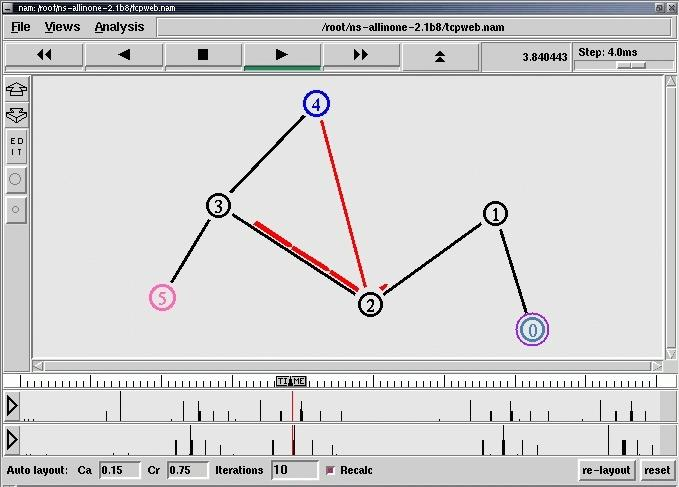

TCPThis scenario examines web traffic over a TCP network. To
simulate this case, we defined six nodes:

• node 0 is the client that will request a web page
  from the web server.
• node 1 is the client's router.
• node 2 is the web cache's primary router.
• node 3 is the web cache's secondary router.
• node 4 is the web cache server.
• node 5 is the web server.

The web cache (node 4) is connected to a web server (node 5)
through a router (node 3). The web client (node 0) is connected to
web cache (node 4) with connection routed through the client's
router (node 1). To simulate this case scenario, you need the
script shown in Listing 2.Listing 2. TCP ScriptWhen executing ns ./tcpweb.tcl, you will
obtain two windows: the network animator and the simulation window.
Figure 5 shows a possible layout of the nodes in simulation window.
To get an accurate picture of traffic from client, bandwidth graphs
for the link between nodes 1 and 2 are displayed.
Figure 5. Dynamic Rerouting of
Packets
Link failure occurs between nodes 2 and 4 (Figure 5) as
defined by the following lines:

$ns rtmodel-at 3 down $lrmon3 $lmcrt1
$ns rtmodel-at 7 up $lrmon3 $lmcrt1

Packets that were on the link are lost and must be
retransmitted. After failure, notice the break in packet traffic in
the bandwidth graphs. TCP packets are now taking another path from
web cache to web client. Yet the connection is not lost because of
the failure, since we can see that packets are still being
exchanged between client and cache. If the display of nodes is not
to your liking, you can change it using the Re-layout function
button in the simulator window. While playing the simulation, you
can change the step using the slider bar. This will be especially
useful during the link failure between three and seven seconds to
see dropped packets.Another interesting aspect of this scenario is the visual
server-cache and client-cache interaction. You can see a model of
real-time common interactions on the Internet. Of course, bear in
mind that this is a generalized simulation.NS2 Graphical EditorIf you prefer a graphical interface to setup network
simulations, NAM supports a drag-and-drop user interface. You can
place network nodes, link them together and define user agents and
their associated application or traffic generator. SCTP is not
included in this interface because the patch was specific to NS2
source code, not NAM. NAM is useful for quickly building a network
topology. However, we experienced multiple segmentation faults
during editing (back up your files often).The following example explains how to use basic NAM features.
The first step is to start an instance of NAM by executing
./nam. Selecting New in the file menu, you will
see the editor window appear. For this example, we are trying to
build the topology seen in Figure 6.

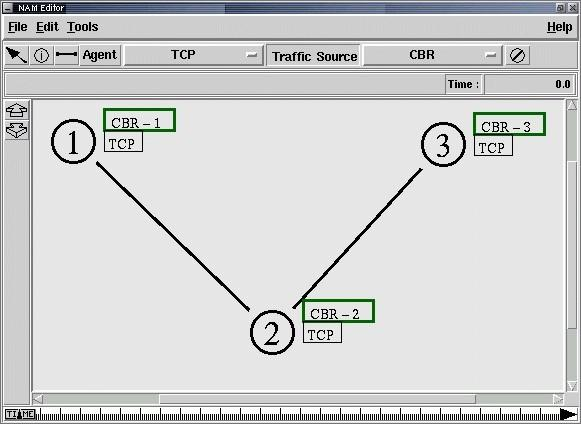

Figure 6. NAM Editor
On the toolbar, click on the Add node button and place three
nodes in editor window by right clicking at the correct positions.
To link nodes, click on Add link. Select one node and drag-click to
the next node to create link. Next, choose which agents you want to
use on network in agent drop-down menu. To add an agent, click on
the appropriate node. Lastly, you choose what applications you want
to simulate: either FTP or CBR source. To add an application, click
on the chosen agent. At this point, you can right click on
different elements in your topology and edit their properties such
as color or start and end time for applications. If you get a
dialog saying that you must connect your agents, use Add link and
connect different agents to simulate your scenario. In case of a
blunder, there is a delete button on the toolbar. Note that editor
and simulation windows are both part of NAM, but simulation must
first be interpreted by NS2 so that NAM can replay the log of
simulation.ConclusionWe decided to test NS2 because of its support of SCTP (which
is a requirement for us), graphical representations, multiple
protocols and many other reasons. However, you need to patch the
source code in case the protocol you want to simulate is not
supported and live with low-quality graphics tool.NS2 is a tool that helps you better understand certain
mechanisms in protocol definitions, such as congestion control,
that are difficult to see in live testing. It provides good
documentation and support for different add-ons. We recommend NS2
as a tool to help understand how protocols work and interact with
different network topologies.We would like to enforce the need for such tools to be open
source and targeted toward supporting Linux. With the emergence of
new protocols, such as IPv6 and SCTP, NS2 can be very useful for
the Open Source community.AcknowledgementsThe Open Systems Lab at Ericsson Research for supporting our
work with Linux and open-source software.ResourcesApplication
and Protocol Testing through Network Emulation(DARPA)
VINT ProjectMacroscopic
Internet Data Measurement and AnalysisNS2 Home
PageNS2
TutorialREAL
Network SimulatorScalable
Simulation FrameworkSCTP Patch for
NS2Stream
Control Transmission ProtocolUniversity of Essen and
Siemens, SCTP ImplementationDavid Gordon
(davidgordonca@hotmail.com)
is finishing his Bachelor's degree in Computer Science at
Sherbrooke University in Quebec, Canada. He is currently an intern
in the Open Systems Lab at Ericsson Research and a member of the
IPv6 research group. His interests include internet protocols,
networking, cryptography and network security.Ibrahim F. Haddad
(Ibrahim.Haddad@Ericsson.com)
is a researcher at the Ericsson Corporate Unit of Research in
Montreal, Canada, where he is involved in researching carrier-class
server nodes for real-time all-IP networks. He is mainly
responsible of the security and IPv6 research activities at the
Open Systems Lab.

email: Ibrahim.Haddad@Ericsson.com

email: Ibrahim.Haddad@Ericsson.com
